Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP
Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP
Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP
Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP
Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP

Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP

Regular price
/

$165.19 USD & FREE Shipping.
  • Measures voltage, current, resistance, frequency, capacitance, and temperature
  • True RMS for no-compromise accuracy
  • Tests continuity and diodes
  • Backlit LCD with 6,000 count display
  • Two voltage detection modes - non-contact or using a single test lead
Overview

The Greenlee DM-510A  Digital Multimeters is a hand-held testing devices with the following measurement capabilities: AC and DC voltage, AC and DC current, frequency, resistance, temperature(K-type thermocouples only) and capacitance. They also check diodes and verify continuity. An optional optically isolated computer interface with software facilitates the recording of readings from the meter to a computer.


The DM-510A multimeter has an AutoCheck™ function for automatic selection of AC voltage, DC  voltage, and resistance with low input impedance to mask “ghost” voltages. The DM-510A also has a crest function, which captures voltage or current signal peaks, as well as a recording function, which stores the maximum and minimum input readings. The DM-510A is a true RMS meter.

Greenlee DM-510A Digital Multimeter, TRMS, AC/DC, CAP, TEMP

Specifications
General Information
Brand
Greenlee
Part Number
DM-510A
Product Type
Digital Multimeter
What's Included
(2) 1.5V AAA Batteries, Bead Temperature Probe (DM-210A, DM-510A Only, 400°F/204°C max), Test leads, ProtectiveBoot
Packaging
Retail
Country of Origin
Taiwan
UPC
783310087427
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.42 kg
0.92 lb
Details
Measurement Standard
CAT IV, CAT II, C/UL US Listed, CAT III, CE Listed
Features
Measures voltage, current, resistance and frequency
Tests continuity and diodes
Backlit LCD with 6,000 count display
Two voltage detection modes - non-contact or using a single test lead
BeepJack warns when test leads are incorrectly inserted in current measurement terminals
Automatic and manual rangeselection
Relative offset mode to see changes in measurements
Data hold
Use optional USB / RS-232 interface DMSC-2U for direct-to-PC logging
Lifetime Limited Warranty

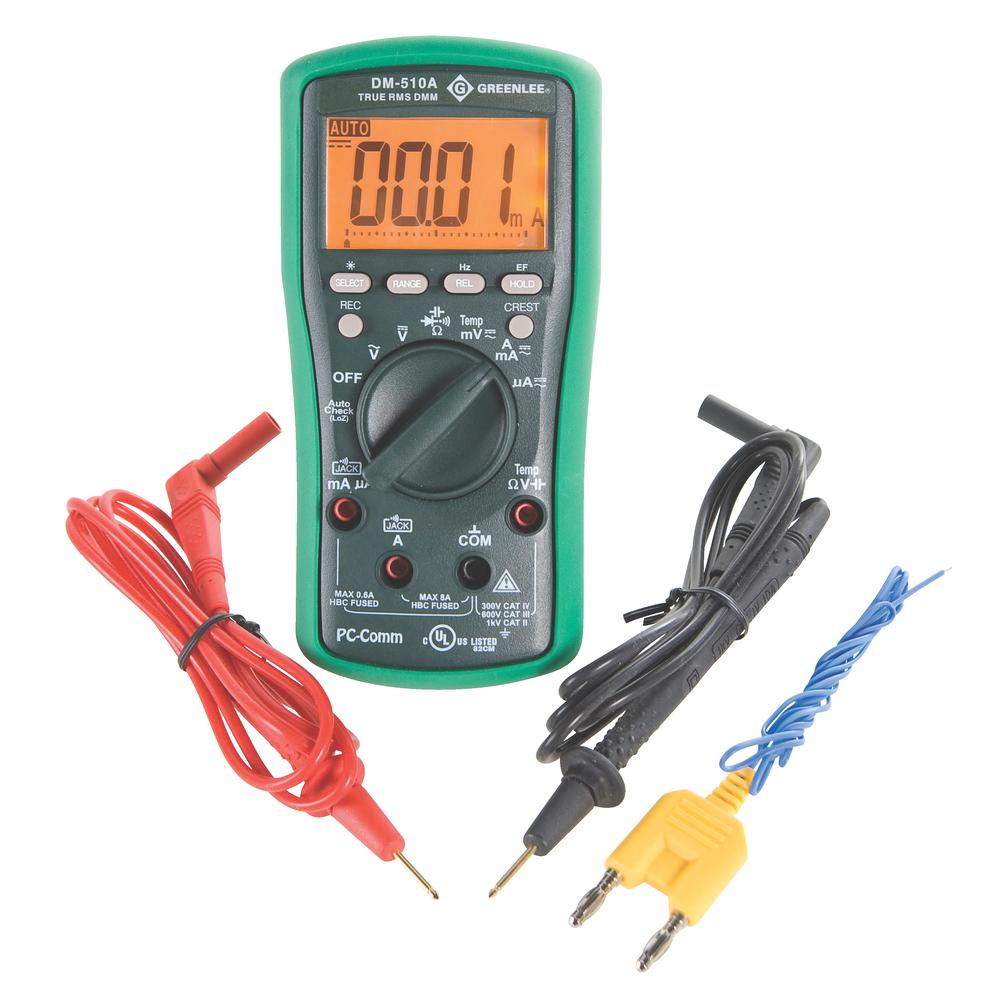

Accessories included: (2)1.5V AAA batteries, bead temperature probe (DM-210A, DM-510A only, 400°F/204°C max), test leads, protective boot
True RMS for no-compromise accuracy
Crest capture (peak hold) plus recording of max, min, max-min and average
Low impedance AutoCheck mode - automatically selects AC or DC volts, resistance or continuity, Low impedance masks ghost voltage pickup
Measures capacitance
Measures temperature using a type K thermocouple

Amperage Measurement: 600, 6000μA; 60, 600mA; 6, 8A
Measurement Category: CAT IV 300 V, CAT III 600 V, CAT II 1000 V
Type: Professional Plant Digital
Voltage
60, 600 mV, 6, 60, 600, 1000V
Capacitance
60, 600 nF; 6, 60, 600, 3000μF
Resistance (Ohms)
600Ω; 6, 60, 600 kΩ; 6, 60 MΩ
Frequency
10Hz - 50kHz Sine Wave, 5Hz - 999.9kHz Logic Level Square Wave
Battery Life
(2) 1.5 V AAA
Display Type
Backlit LCD With 6,000 Count
Temperature Range
K Type, -58 To 1832°F (-50 To 1000°C)
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
