Overview
Features

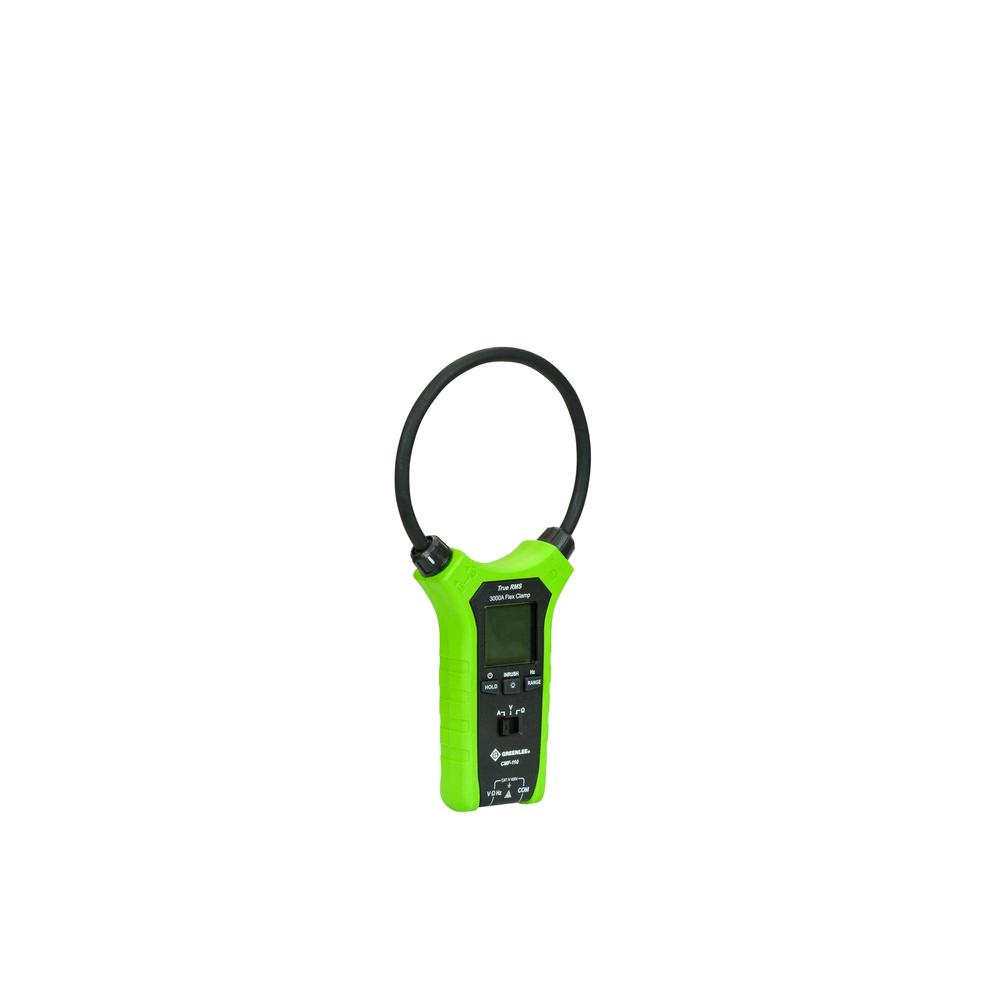

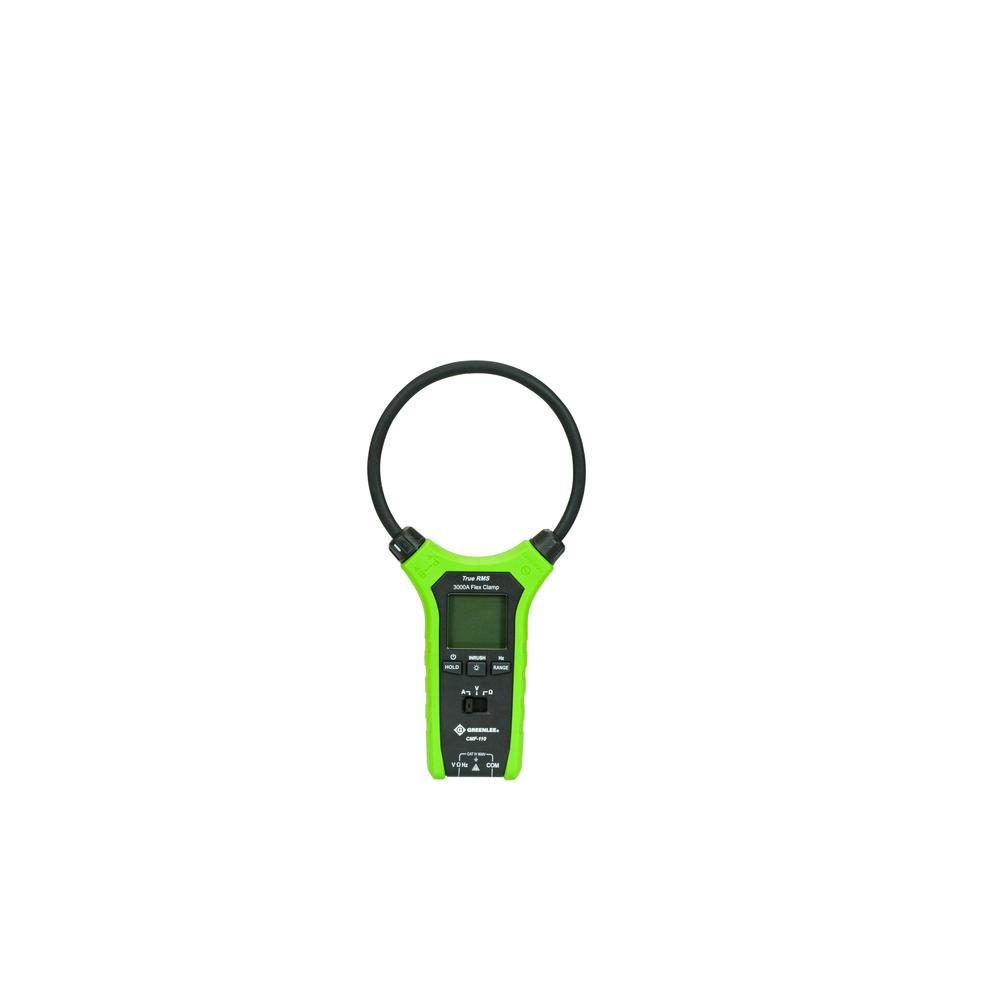

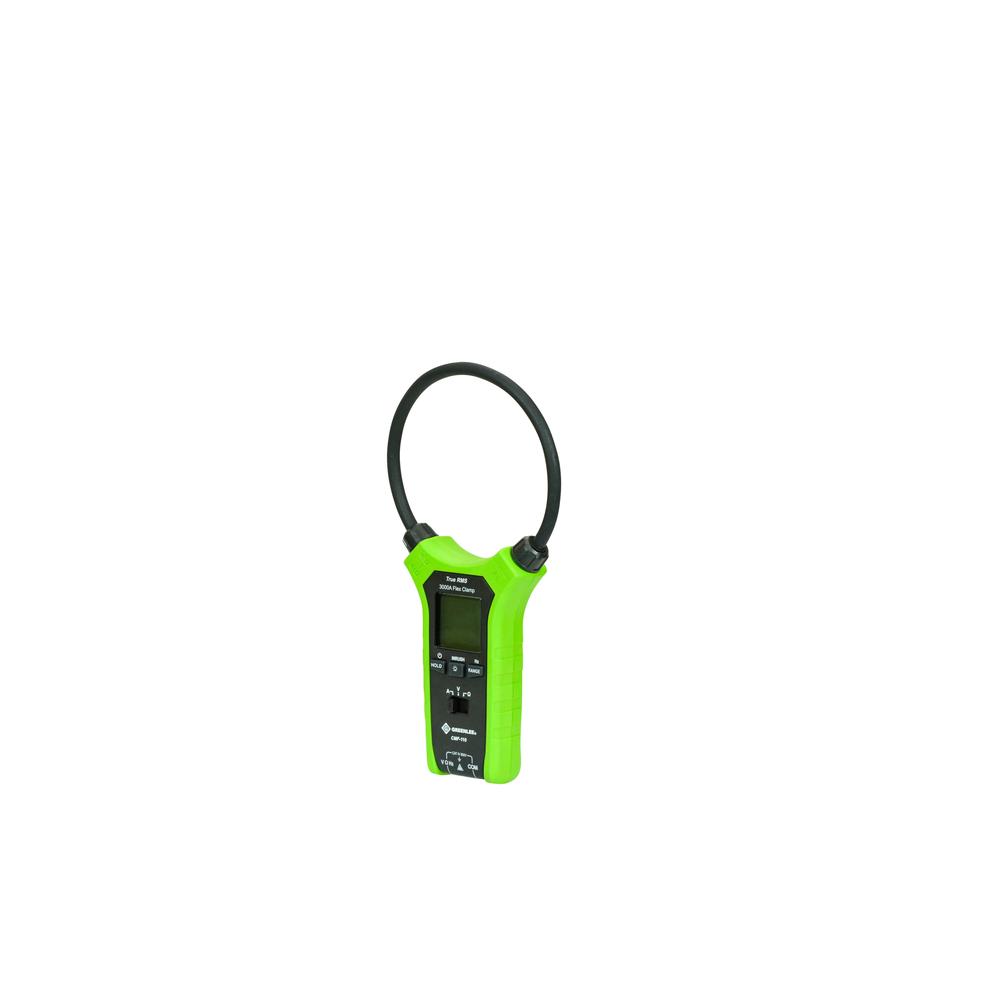

The Greenlee CMF-110 Flex Clamp Meter is a hand-held testing device that measures AC current, AC voltage, resistance, and frequency. The meter is designed to be placed on or removed from insulated or uninsulated conductors.
You may also like
Specifications
General Information
Brand
Greenlee
Part Number
CMF-110
Product Type
10" Flex Clamp Meter
What's Included

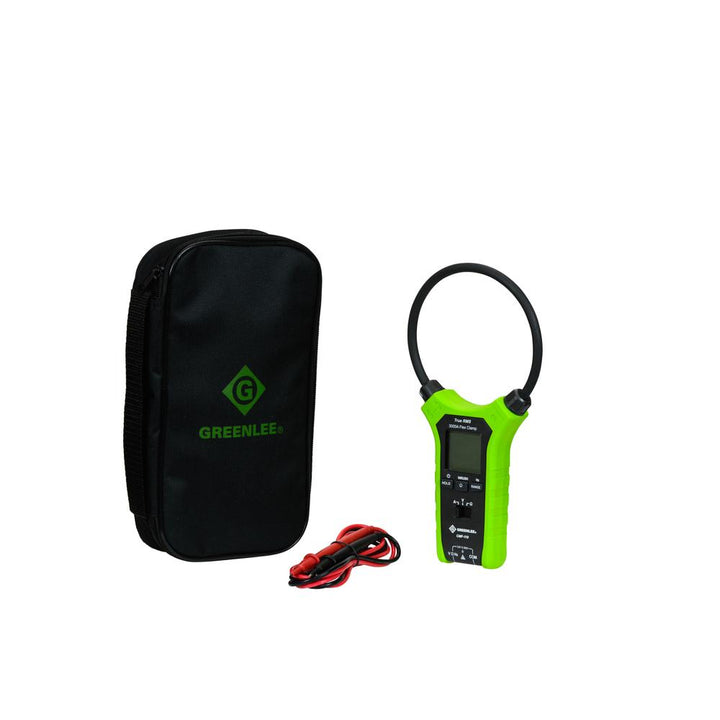

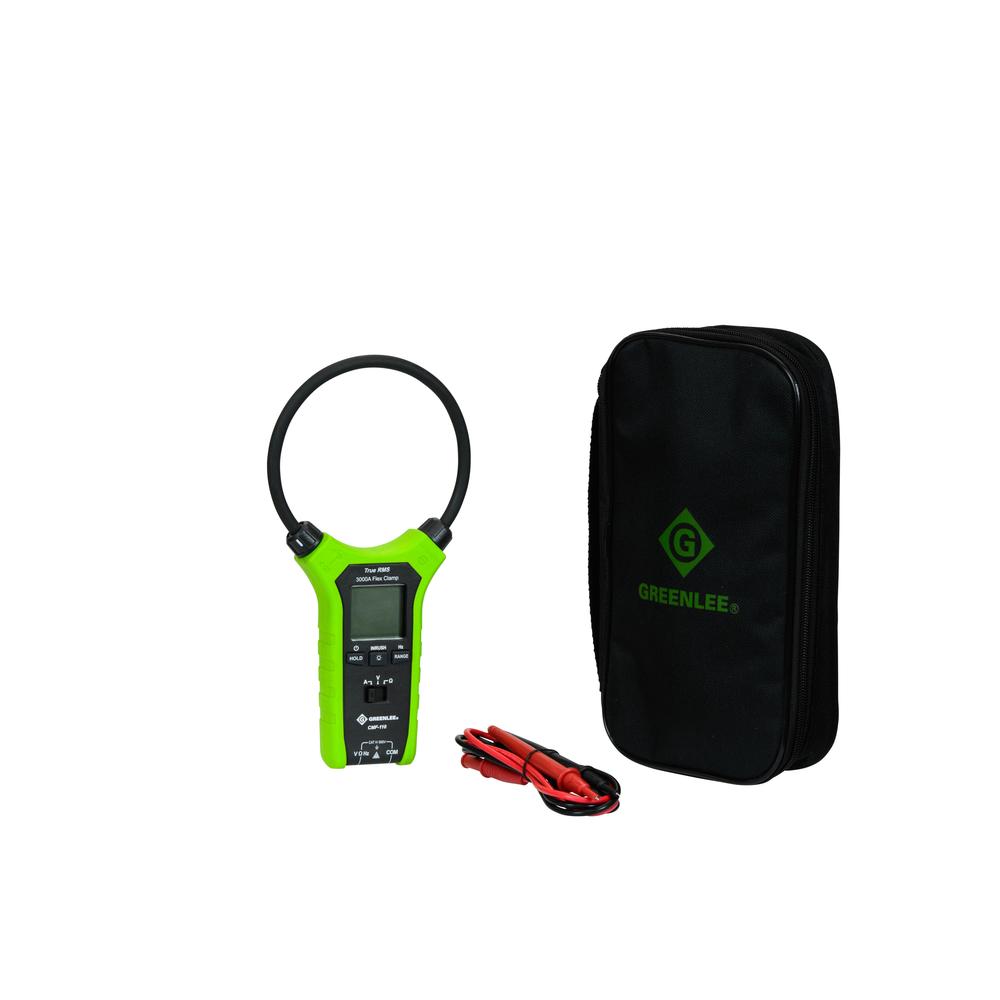

Leads, Carrying Case, 3 AAA Batteries
Packaging
Retail
Country of Origin
China
UPC
783310088530
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
0.56 kg
1.23 lb
Details
Measurement Standard
Compliance: CE, CETLUS
Features
Flex meter accurately measures TRUE RMS AC current, AC voltage, resitance, frequency and inrush current.

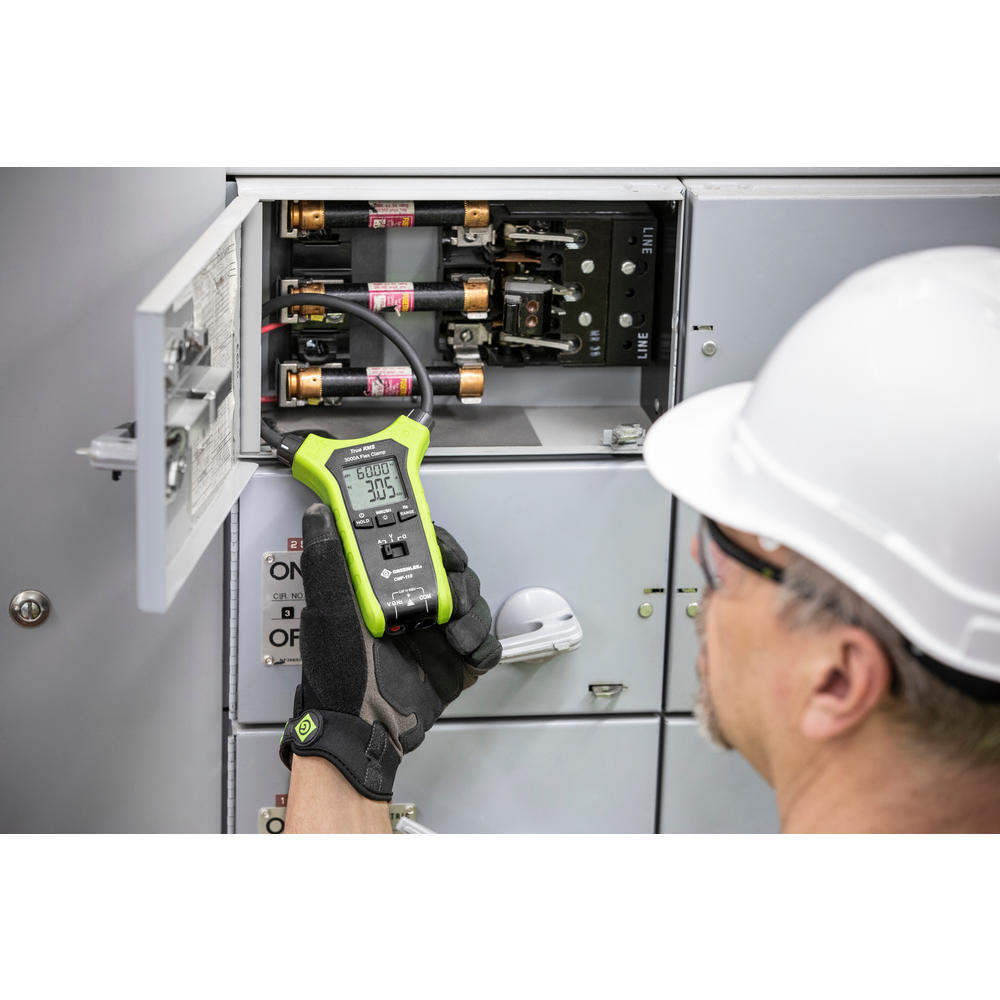

Flexible Rogowski coil easily maneuvers around cables that are hard to reach or deep within cabinets
Amperage Rating: 30A/300A/3000A
Accuracy Voltage: ±1.2% + 300mV
Coil Diameter: 10 in. (25.4 cm)
Safety Category Rating: CAT IV 600V
Flexible Rogowski coil easily maneuvers around cables that are hard to reach or deep within cabinets
Amperage Rating: 30A/300A/3000A
Accuracy Voltage: ±1.2% + 300mV
Coil Diameter: 10 in. (25.4 cm)
Safety Category Rating: CAT IV 600V
Current
Inrush Current: 80ms, minimum: 3.0A
Voltage
6V/60V/600V
Resistance (Ohms)
Resistance: 60.0MΩ
Frequency
20 - 30kHz
Batteries
3 AAA 1.5V batteries
Display Type
LCD
Temperature Range
Operating Temperature: 0 to 50°C
Why would you use this tool for ?
About manufacturer
Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
