Overview
Features
- 2-component handle for improved feel
- Simplified locking for adjusting the torque value
- Viewing window for visual checking of the locking
- 4 colored coding rings (red, yellow, green, black) for markings in the case of personalization or special workflows
- Without signal transmitter
- ± 2 % accuracy of scale value (in direction of actuation)
- High-precision premium torque tools – for highest demands
- Hard chrome-plated steel tube - slim, but very sturdy and wear-resistant

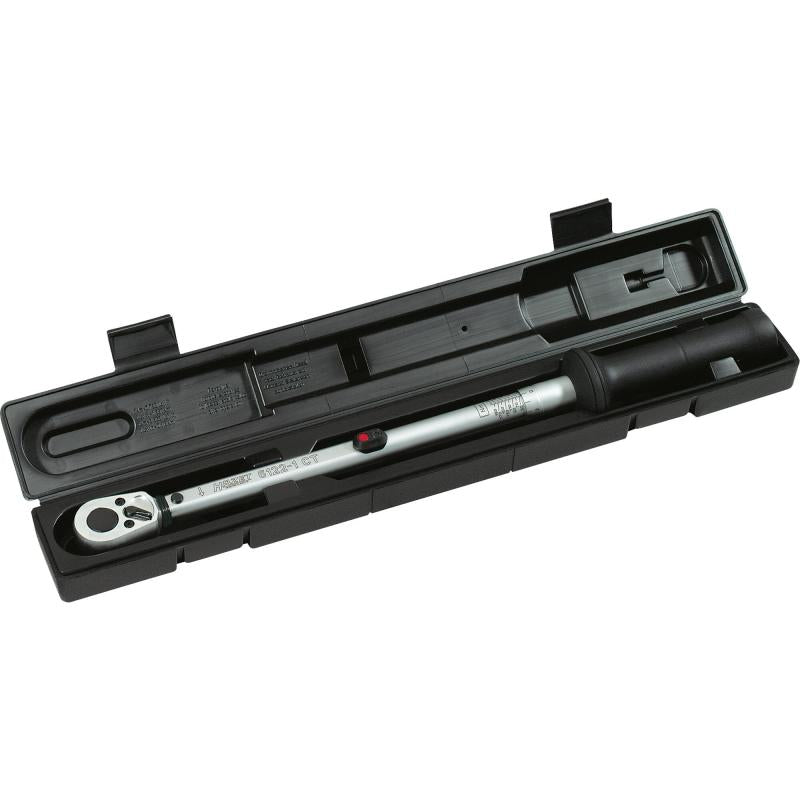

- Secure storage in safe box with display window
- Safety:
- Haptic (close-gap release)
- Audible (“click” sound)
- Visual (models with signal transmitter)
- User-friendly reversible ratchet
- Service-friendly (do-it-yourself repair sets for ratchets available)
- Integrated shift lever
- Easy and safe adjustment of the desired torque value by turning the handle
- Knob for additionally locking the set value
- Ergonomically shaped handle with collar reduces the risk of slipping-off and injury
- Accuracy – fine scale graduation
- 6121-1 CT – 6123-1 CT: shift lever with idle function – reduces risk of injury and malfunction
- With calibration certificate and serial number
- No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required
You may also like
Specifications
General Information
Brand
Hazet
Part Number
6144-1CT
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896025541
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Finish
Hard chrome-plated
Length
1046 mm
Weight
5.54 kg
12.21 lb
Details
Wrench Type
Torque
Type
Square, solid
Size
20 mm (3/4 inch)
Features
Effective torque wrench length min.-max. I1 mm: 944.70 – 932.70 Nm
Actuating force min.-max. kg: 21.6 – 54.6 kg
Number of teeth: 32 (Opening angle 11.25°)

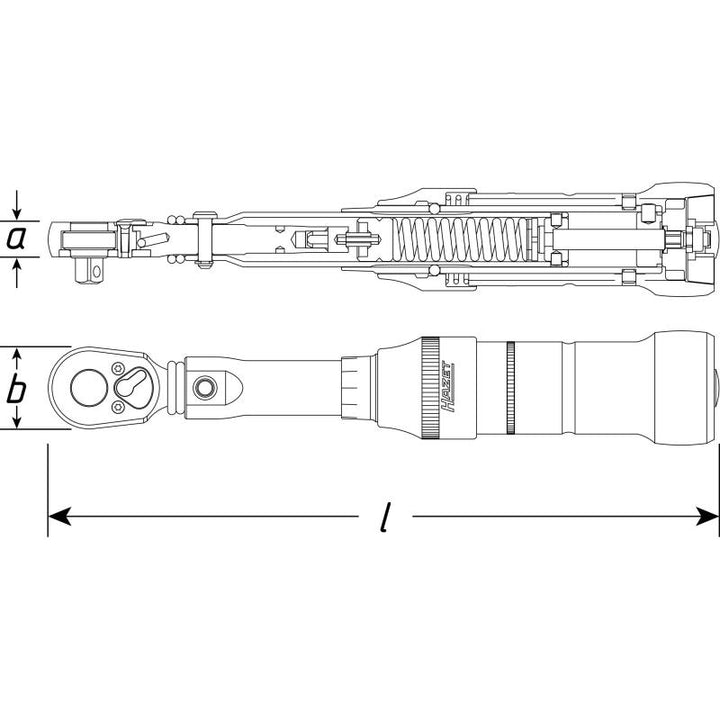

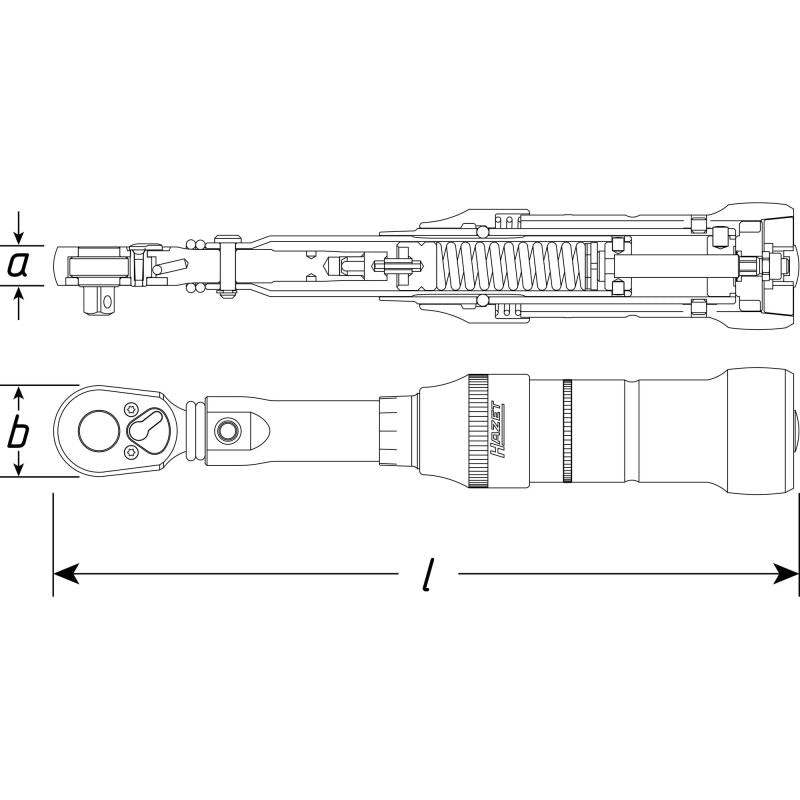

Head Thickness a: 28.5 mm
Head Width b: 64 mm
Actuating force min.-max. kg: 21.6 – 54.6 kg
Number of teeth: 32 (Opening angle 11.25°)
Head Thickness a: 28.5 mm
Head Width b: 64 mm
Torque Range Nm
200 – 500 Nm
Torque Accuracy
± 2 % accuracy of scale value (in direction of actuation)
Why would you use this tool for ?
About manufacturer
Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
