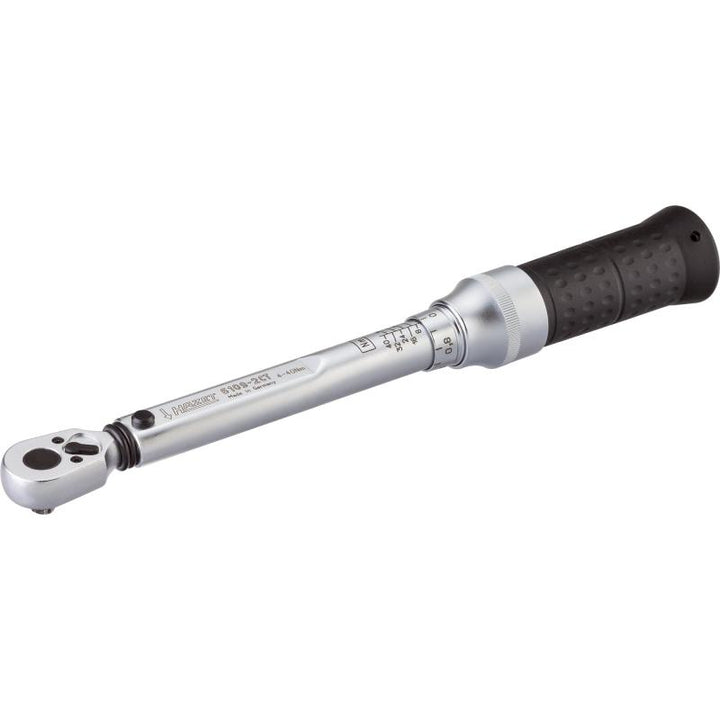

Hazet 6109-2CTCAL Torque Wrench, 4-40 Nm, 6.3mm (1/4") Square
Hazet 6109-2CTCAL Torque Wrench, 4-40 Nm, 6.3mm (1/4") Square
Hazet 6109-2CTCAL Torque Wrench, 4-40 Nm, 6.3mm (1/4") Square

Hazet 6109-2CTCAL Torque Wrench, 4-40 Nm, 6.3mm (1/4") Square

Regular price
/

$1,799.00 USD & FREE Shipping.
  • Torque wrench including DAkkS calibration certificate
  • Easy and safe adjustment of the desired torque value by turning the handle
  • Especially slim design thanks to spring-loaded puller sleeve for locking the setting values
  • Accuracy ± 2 % of scale value (in direction of actuation)
  • Nm min-max: 4 – 40 Nm
Overview
  • Safety:
    • Haptic (close-gap release)
    • Audible (“click” sound)

Torque wrench including DAkkS calibration certificate. For engines, gearboxes, machinery, industry, model making. No turning back: continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have been able to demonstrate that turning them back to the smallest scale value is no longer required.

Hazet 6109-2CTCAL Torque Wrench, 4-40 Nm, 6.3mm (1/4") Square

Specifications
General Information
Brand
Hazet
Part Number
6109-2CTCAL
Product Type
Torque wrench
Packaging
Retail
Country of Origin
Germany
UPC
4000896193318
California Residents
Proposition 65 Warning
Physical Characteristics
Color
Black
Length
256 mm
Weight
0.40 kg
0.88 lb
Details
Wrench Type
Torque
Type
Square, solid
Size
6.3 mm (1/4 inch)
Features
Scale Graduation (Nm): 0.4 Nm
Effective torque wrench length min.-max. I1 mm: 203.90 – 190.40 Nm
Actuating force min.-max. kg: 2.0 – 21.4 kg
Number of teeth: 20 (Opening angle 18°)

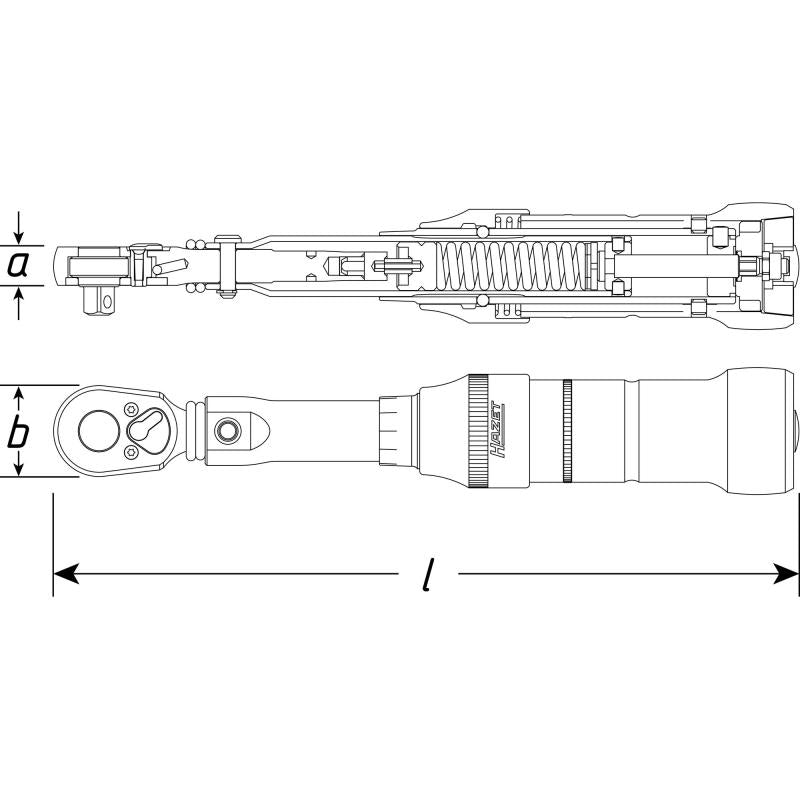

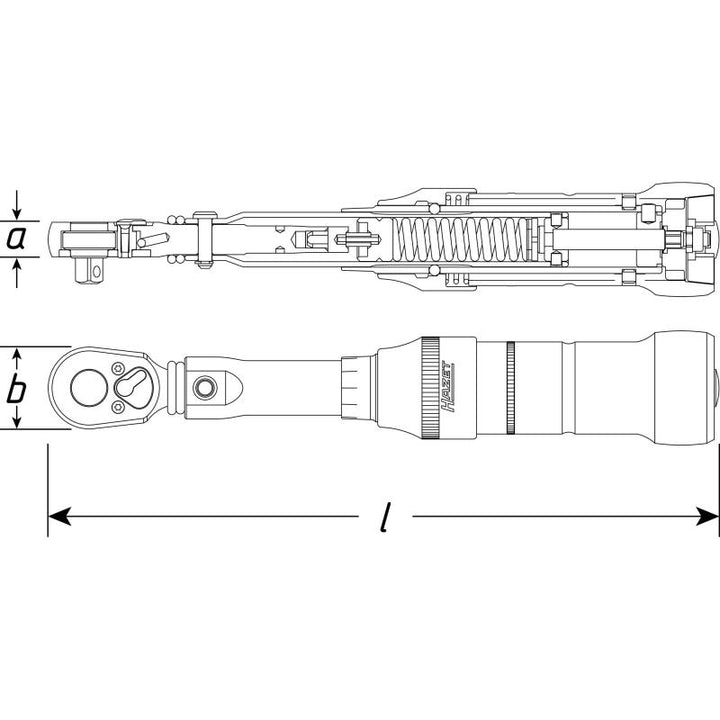

Head Thickness a: 10.2 mm
Head Width b: 24 mm
Torque Range Nm
4 – 40 Nm
Torque Accuracy
± 2 % of scale value (in direction of actuation)
Why would you use this tool for ?
About manufacturer
Hazet

Hazet Tools are indeed some of the best tools made today, and they have a long tradition of excellence to back them up. Hazet got started in 1868 in Remscheid, Germany making parts for construction, lawnmowers and locks. Hazet has since grown and earned their reputation as the leader in manufacturing automotive tools, pioneering tools specifically made for cars as early as 1913. They further solidified their reputation in automotive tools by developing and making the tool for the iconic Volkswagen Beetles and Porsche 356. Hazet Tools and automotive work are the perfect match!
