Johnson 40-6517 Self-Leveling Rotary Laser System

/
$769.95 USD & FREE Shipping.
Extended Handling May Be Required
  • Self-leveling in horizontal plane
  • Locking mechanism protects inner pendulum during transportation
  • Manual-leveling in the vertical plane with 90 degrees split beamVisual and audible alarms when beyond leveling range
  • Laser rotates at 200, 400, 600 RPM
Overview
Perfect for small jobsites, this rotary self levels in the horizontal plane and manually levels in the vertical plane. The rotary also features an illuminated vertical vial and adjustable rotational speeds of 200, 400 or 600 RPM. Accuracy is never a problem thanks to the visual and audible alarms that alert you when the rotary is beyond its leveling range and the locking compensator that protects the inner pendulum during transport. With the included wall/ceiling mount, 8-foot grade rod, detector and clamp, tinted glasses, magnetic target, elevating tripod and hard-shell carrying case, this leveling system will get your jobsite up and running
Brand img

Johnson 40-6517 Self-Leveling Rotary Laser System

Specifications
General Information
Brand
Johnson
Part Number
40-6517
Product Type
Self-Leveling Rotary Laser System
What's Included

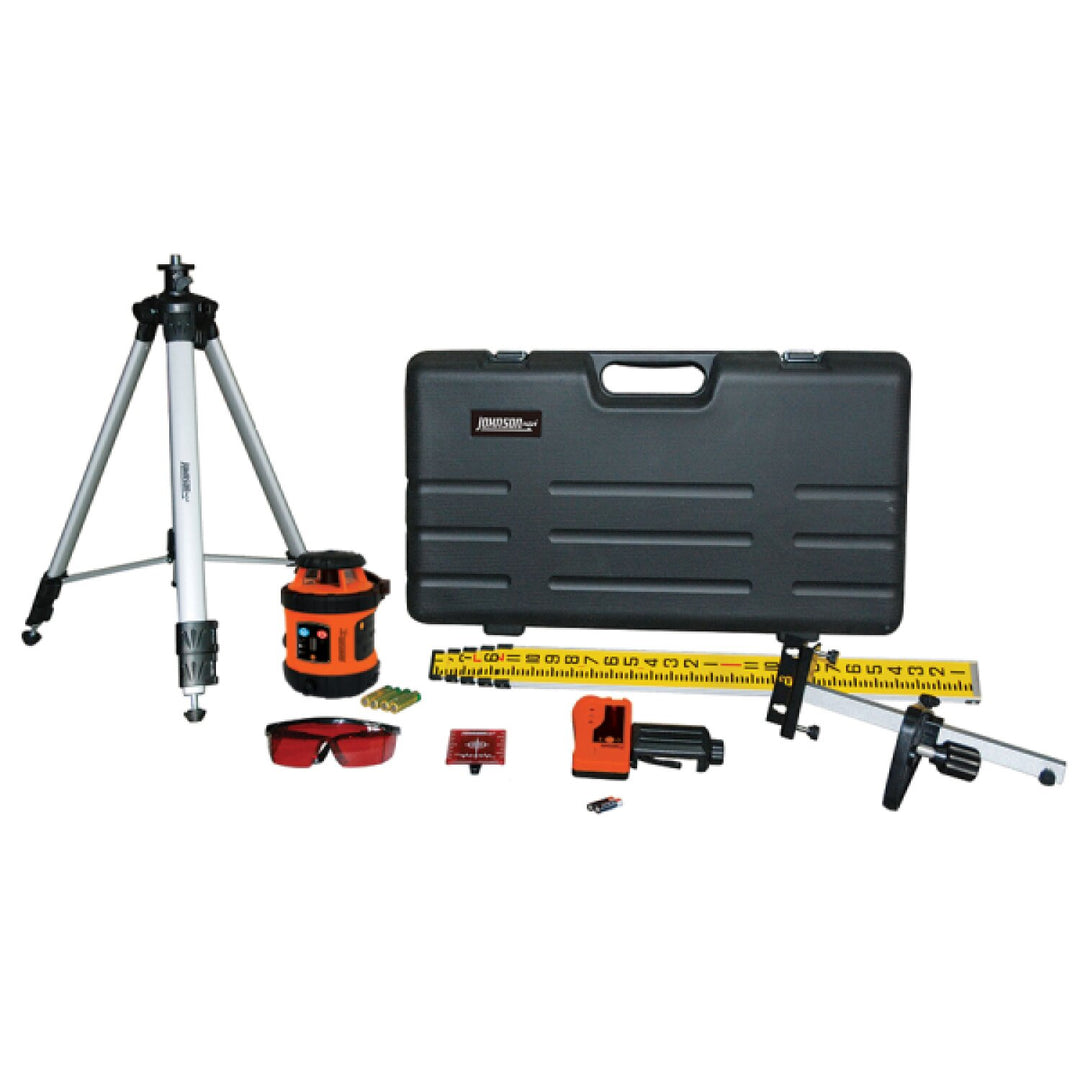

Laser, 4 “AA” alkaline batteries, wall-ceiling mount, 8 ft. grade rod, detector with 2 “AAA” alkaline batteries and clamp, tinted glasses, magnetic target, elevating tripod, and hard-shell carrying case.
UPC
049448065172
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
9.85 kg
21.72 lb
Details
Features
Self-leveling in horizontal plane
Locking mechanism protects inner pendulum during transportation
Manual-leveling in the vertical plane with 90 degrees split beamVisual and audible alarms when beyond leveling range
Laser rotates at 200, 400, 600 RPM
Illuminated vertical vial
Batteries
4 "AA" alkaline batteries
Range
Up to 200 ft.
Accuracy
±1/4"/100 ft.
Resources
40-6517_2203310955.pdf
Video
Johnson 40-6517 Self-Leveling Rotary Laser System
Why would you use this tool for ?
About manufacturer
Johnson

Johnson Level & Tool Mfg Company is the go-to source for precise and dependable measuring and leveling tools in the building trades. Their comprehensive selection spans from the latest in digital and laser technology to classic bamboo spirit levels, ensuring there's a tool for every precision task. Built on a foundation of innovation and durability, Johnson Level equips professionals with the confidence to turn detailed plans into reality with precision. For craftsmanship that demands accuracy, Johnson Level delivers tools that stand the test of time and measure.
