Greenlee DDVM-40 Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base
Greenlee DDVM-40 Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base
Greenlee DDVM-40 Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base

Greenlee DDVM-40 Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base

Regular price
/

$1,966.40 USD & FREE Shipping.
  • Measures voltage and performs phasing operations from 5V to 40kV
  • Two large displays are synchronized with the same voltage reading shown
  • Versatile for overhead and underground applications
  • Capacitive Test Point and Peak Hold modes
  • Tests for leakage current in cable fault test mode with available accessory
Overview

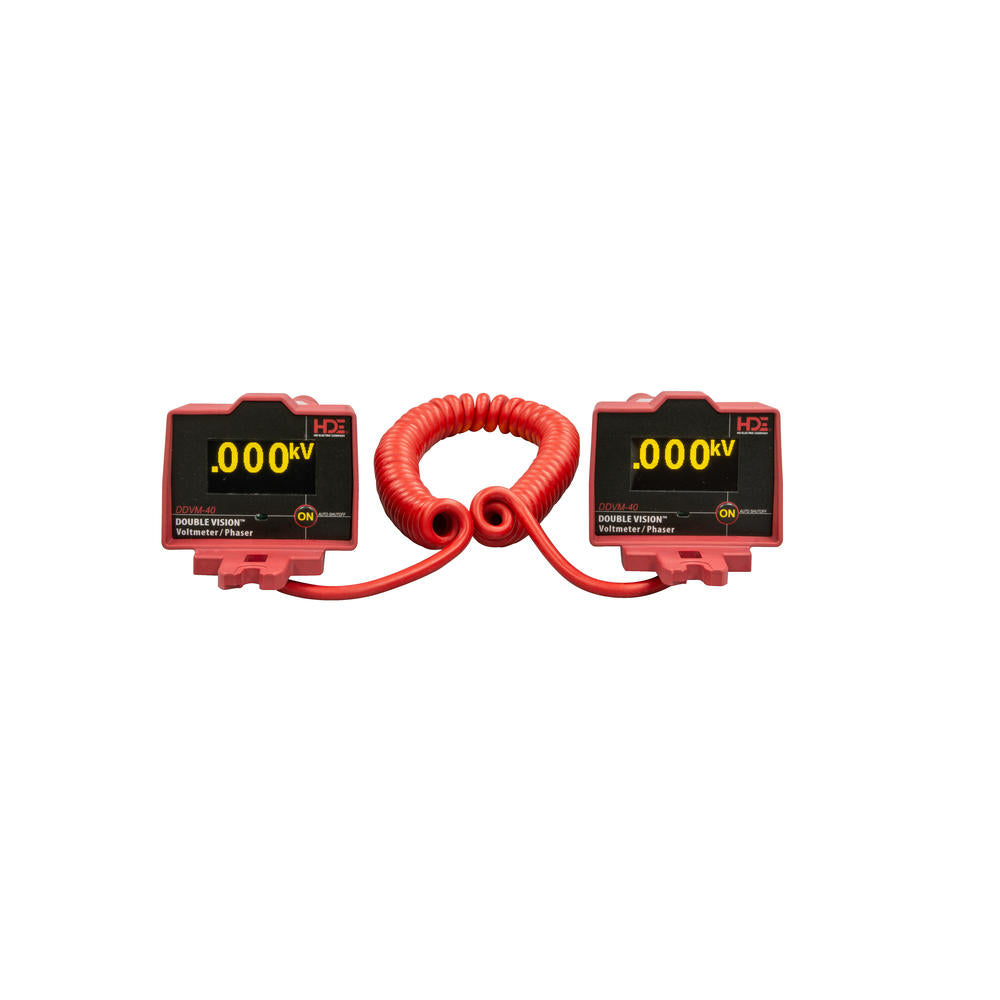

The Dual Display Digital Voltmeter, model DDVM-40, is a  compact, high accuracy dual display voltmeter and phasing set with capacitive test point mode and peak hold. Voltage is displayed on the two large, bright LED displays that can easily be read from a distance or in bright conditions. The two LED displays are synchronized so that the same voltage reading is shown on both displays.

Greenlee DDVM-40 Double Vision® Dual Display Voltmeter/Phasing Set 5V-40kV, OH Kit, Base

Specifications
General Information
Brand
Greenlee
Part Number
DDVM-40
Product Type
Voltmeter
What's Included

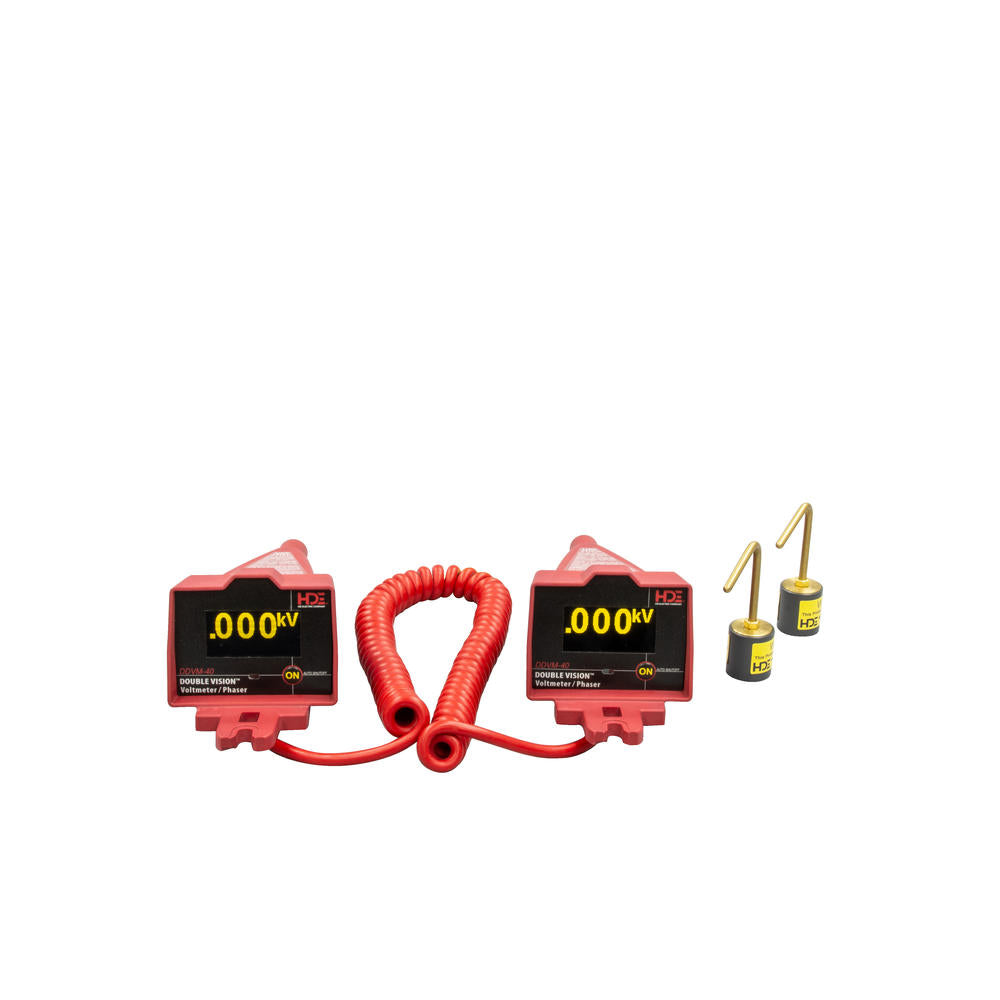

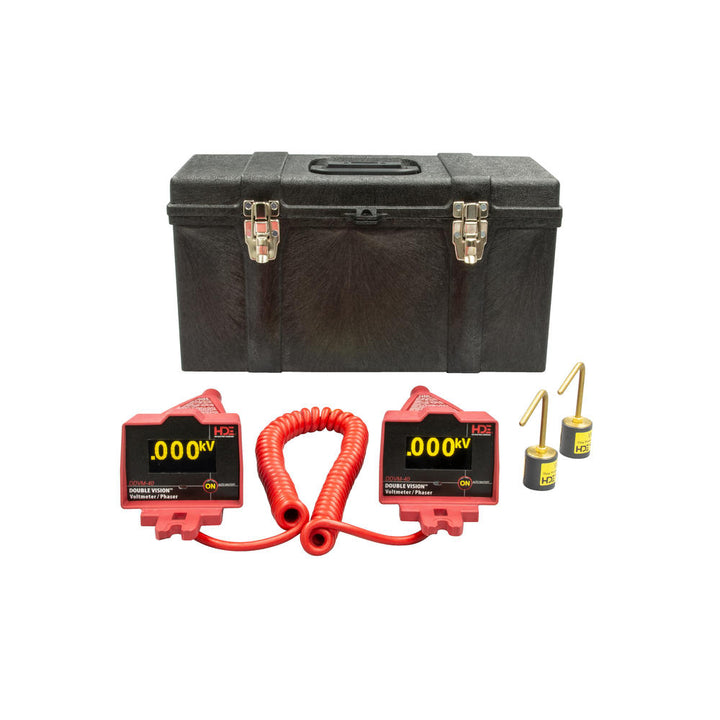

DDVM-40, (2) 025-OLPS-5 Overhead Brass Hook Probes and CS-DDVM Case Case
Packaging
Retail
Country of Origin
United States
UPC
783310081111
California Residents
Proposition 65 Warning
Physical Characteristics
Length
14" (36 cm)
Width
4 5/8" (11 cm)
Height
4" (10 cm)
Weight
5.92 kg
13.06 lb
Details
Features
Measures voltage and performs phasing operations from 5V to 40kV
Two large displays are synchronized with the same voltage reading shown
Versatile for overhead and underground applications
Capacitive Test Point and Peak Hold modes
Tests for leakage current in cable fault test mode with available accessory

Accuracy: Within 1% of reading +/- 3 counts
Voltage
5V - 40kV line-to-ground
Frequency
25 - 1000Hz AC/DC
Display Type
Two LED displays with 0.7" numeral height. Displays 3 digits
Temperature Range
-20°F to +120°F (-29°C to +49°C)
