Stahlwille 96502105 730NR Service MANOSKOP torque wrench
Stahlwille 96502105 730NR Service MANOSKOP torque wrench
Stahlwille 96502105 730NR Service MANOSKOP torque wrench

Stahlwille 96502105 730NR Service MANOSKOP torque wrench


Regular price$681.86 USD & FREE Shipping.
/

  • clicking type with dual stop signal
  • no reset to '0' required
  • the measuring element is only under load when a force is applied
  • with permanently installed QuickRelease ratchet
  • with QuickRelease safety lock
Overview

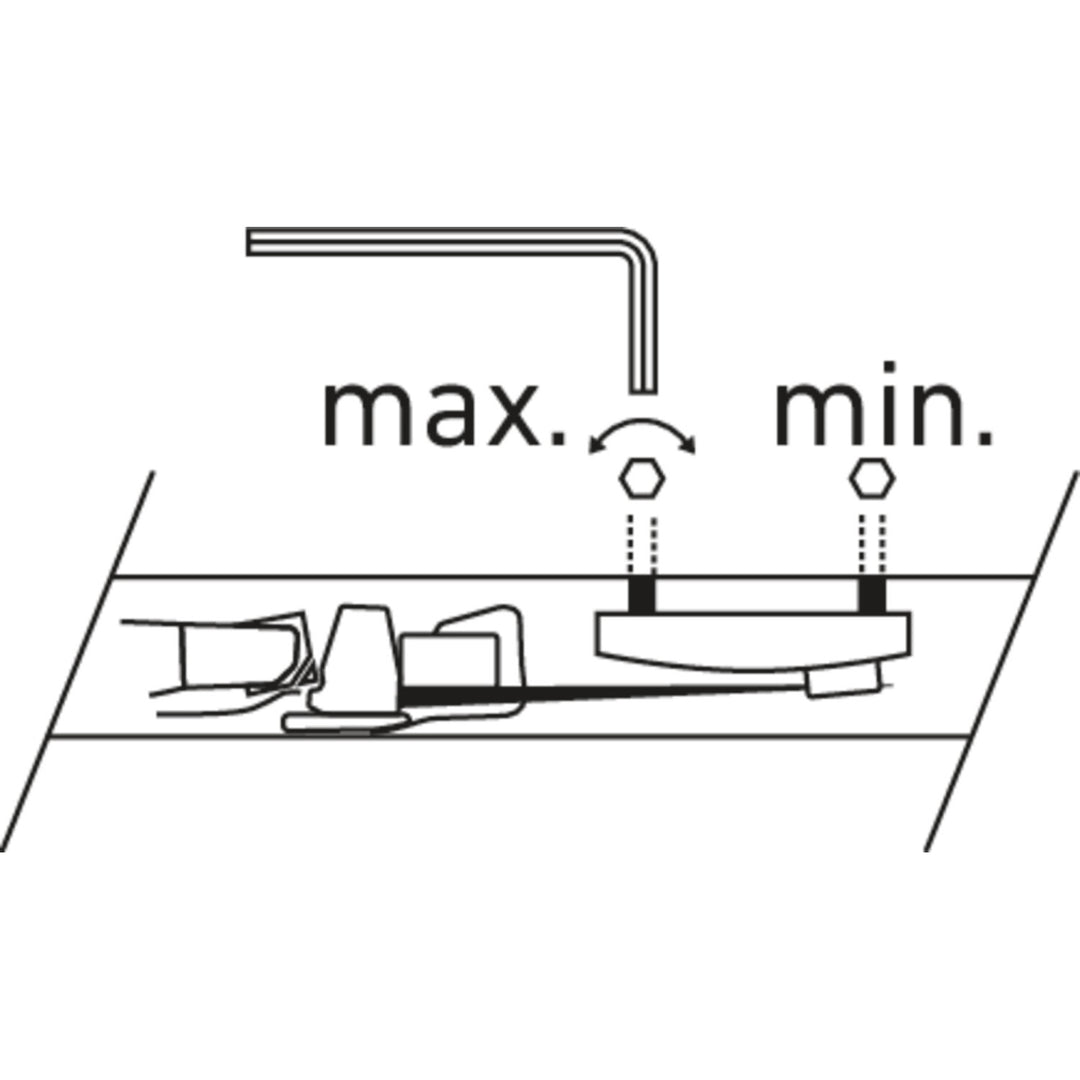

This clicking type torque wrench features a dual stop signal and does not require resetting to “0”. The measuring element is only under load when a force is applied. It is equipped with a permanently installed QuickRelease ratchet and a QuickRelease safety lock The tool allows fast and precise adjustment with QuickSelect quick adjustment and includes a dual scale in N·m/ft·lb. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range of the torque wrench Optimal calibration can be carried out with perfectControl® calibration systems No. 7794 or calibration systems No. 7706 and 7791. It enables easy adjustment without disassembly via two external adjustment screws Supplied in a sturdy plastic box with a 2-component handle and a calibration certificate in accordance with DIN EN ISO 6789-2:2017. Accuracy: ±4%.

Stahlwille 96502105 730NR Service MANOSKOP torque wrench

Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754180493
California Residents
Proposition 65 Warning
Part Number
96502105
Physical Characteristics
Length
372.5 mm
Width
92 mm
Height
70 mm
Weight
10.50 kg
23.15 lb
Details
Wrench Type
Torque
Torque Range ft lbs
7-37 ft lb
Torque Range Nm
10-50 Nm
Torque Accuracy
± 4%
Size
5QR FC
Features
clicking type with dual stop signal
no reset to '0' required
the measuring element is only under load when a force is applied
with permanently installed QuickRelease ratchet
with QuickRelease safety lock
Drive Connector Size
3/8 Inches
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
