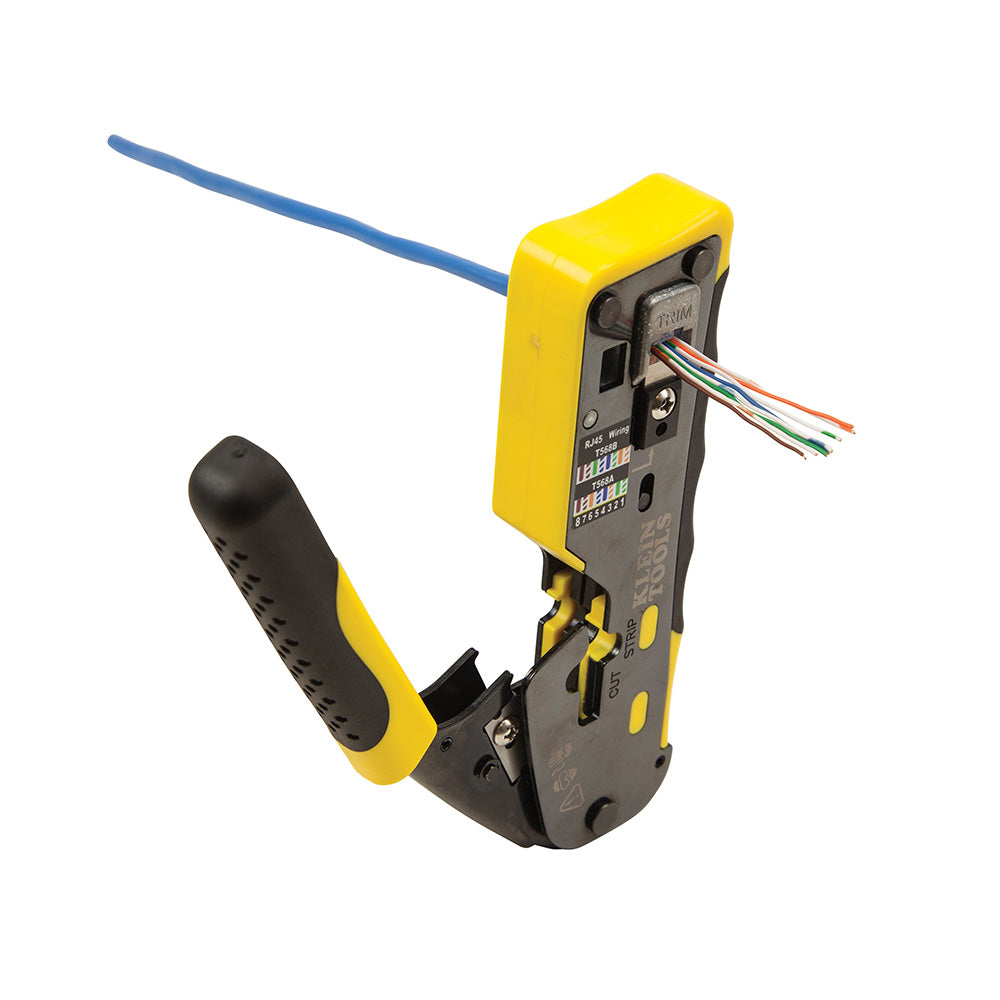

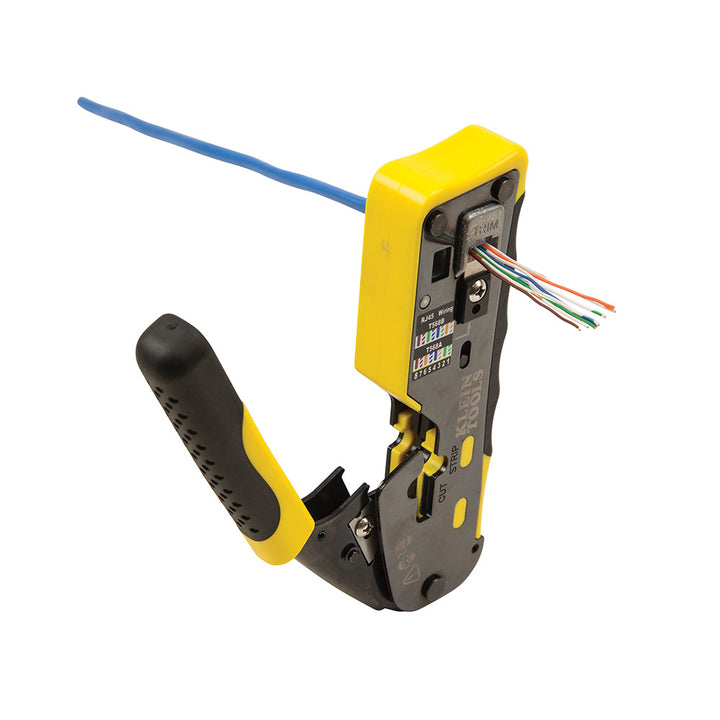

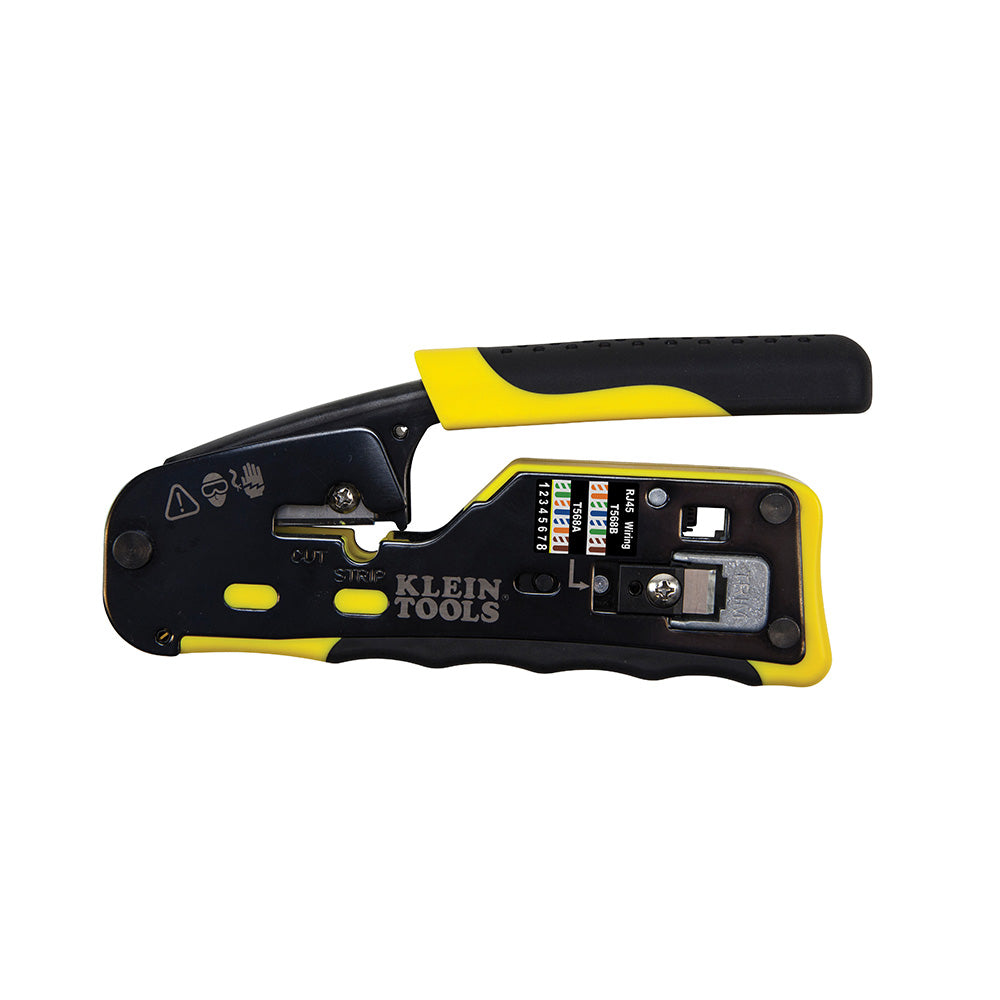

Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper
Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper

Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper

/
$49.97 USD & FREE Shipping.
 More payment options
  • Fast, reliable modular crimp-connector install tool for voice and data applications with Pass-Thru RJ45 connector plugs
  • All-in-one tool cuts, strips and crimps paired-conductor data cables
  • Trims flush to end face of connector eliminating unintended contact between conductors
  • Crimps and trims Klein Tools RJ45 Pass-Thru Connectors
  • Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru)
Overview
Premium, long lasting tool cuts, strips and crimps CAT3, CAT5e and CAT6/6A cable using RJ11/RJ12 standard and RJ45 Pass-Thru connectors. Pass-Thru technology significantly reduces prep work time; wiring diagram on the tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru Connectors (in packs of 10, 50 or 200).

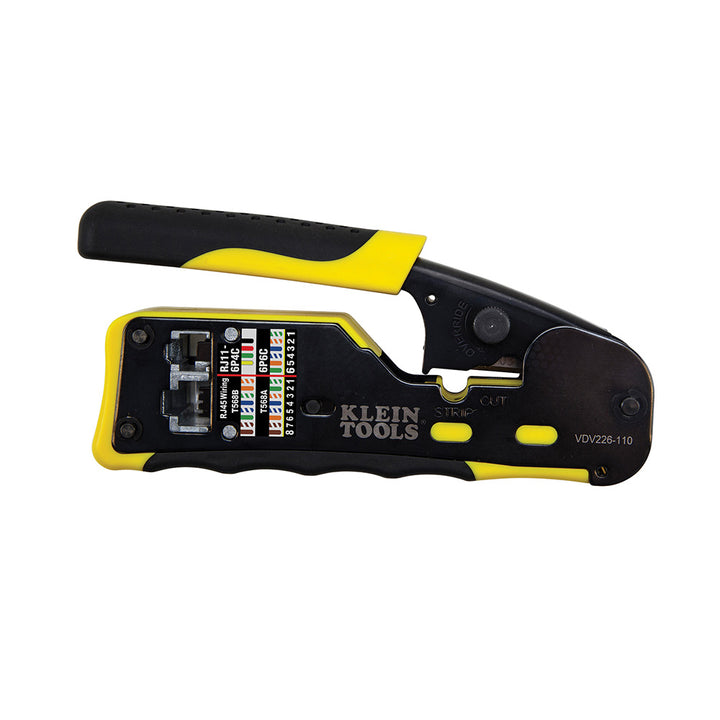

Klein Tools VDV226-110 Ratcheting Pass-Thru Modular Crimper

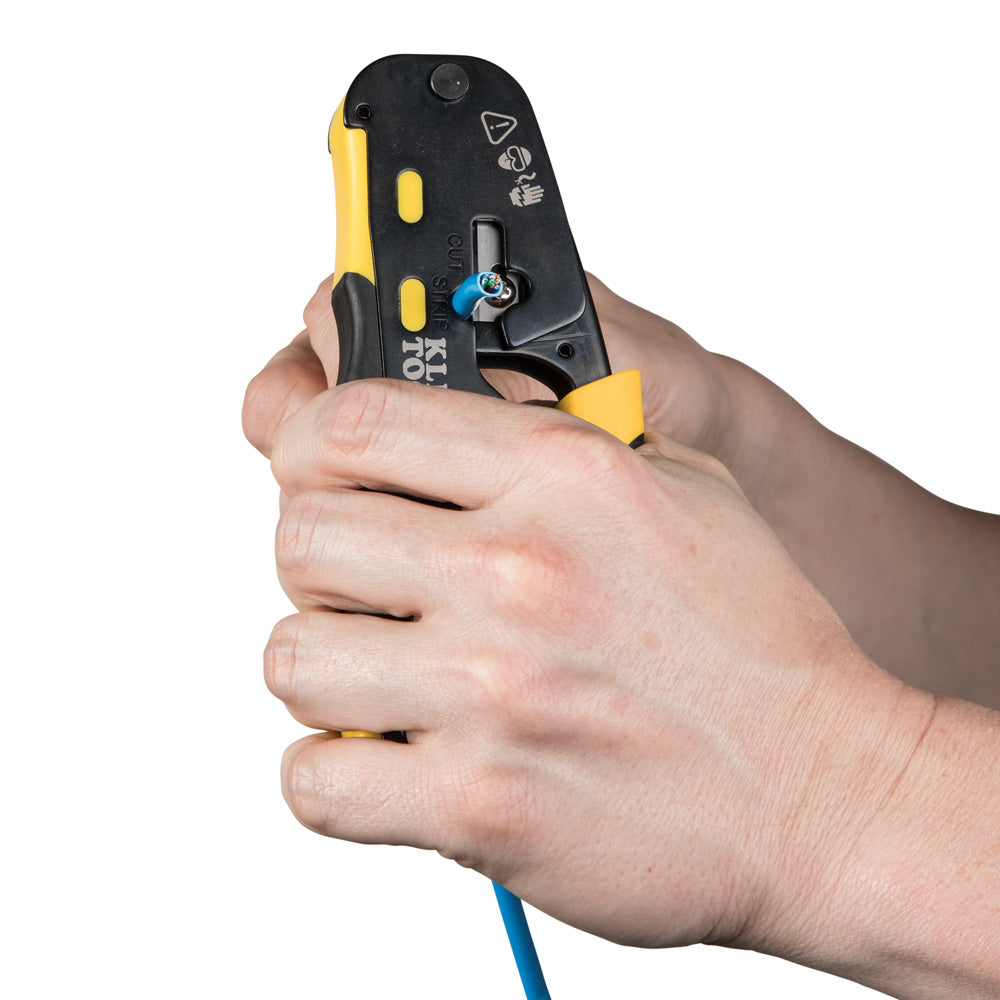

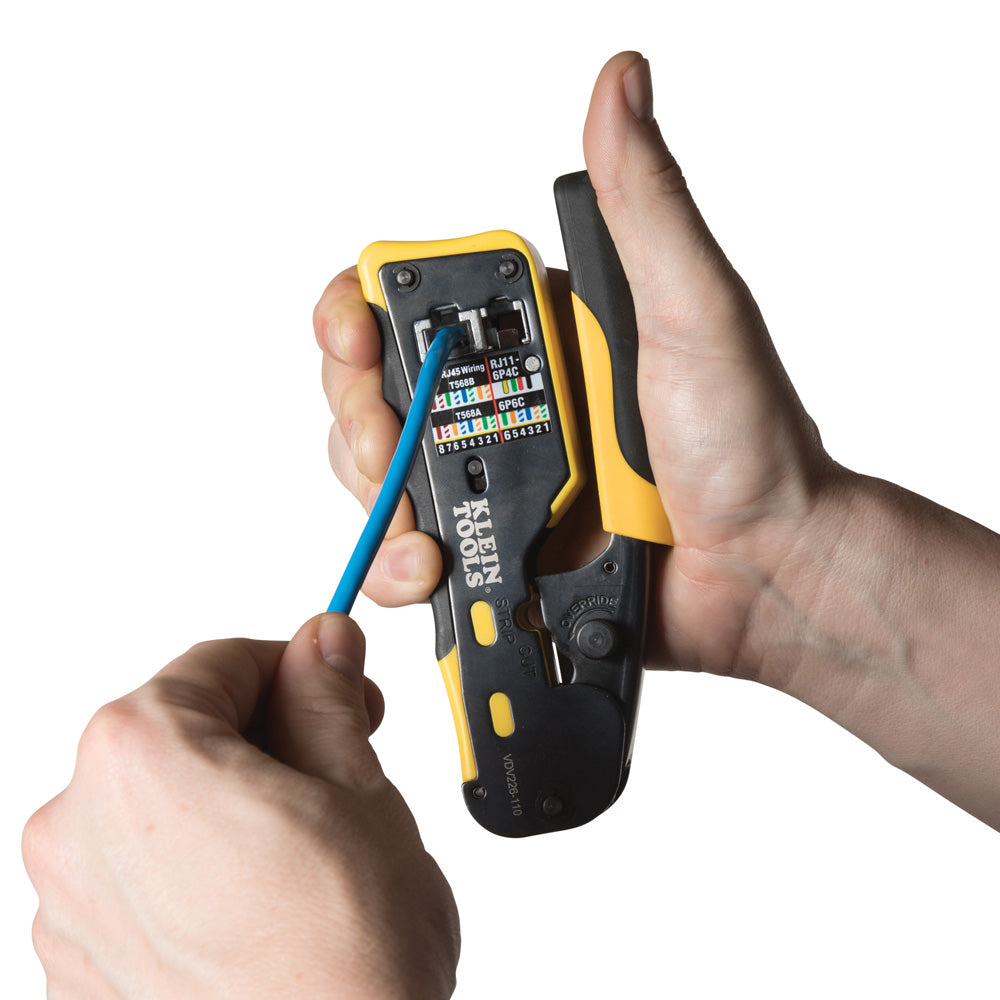

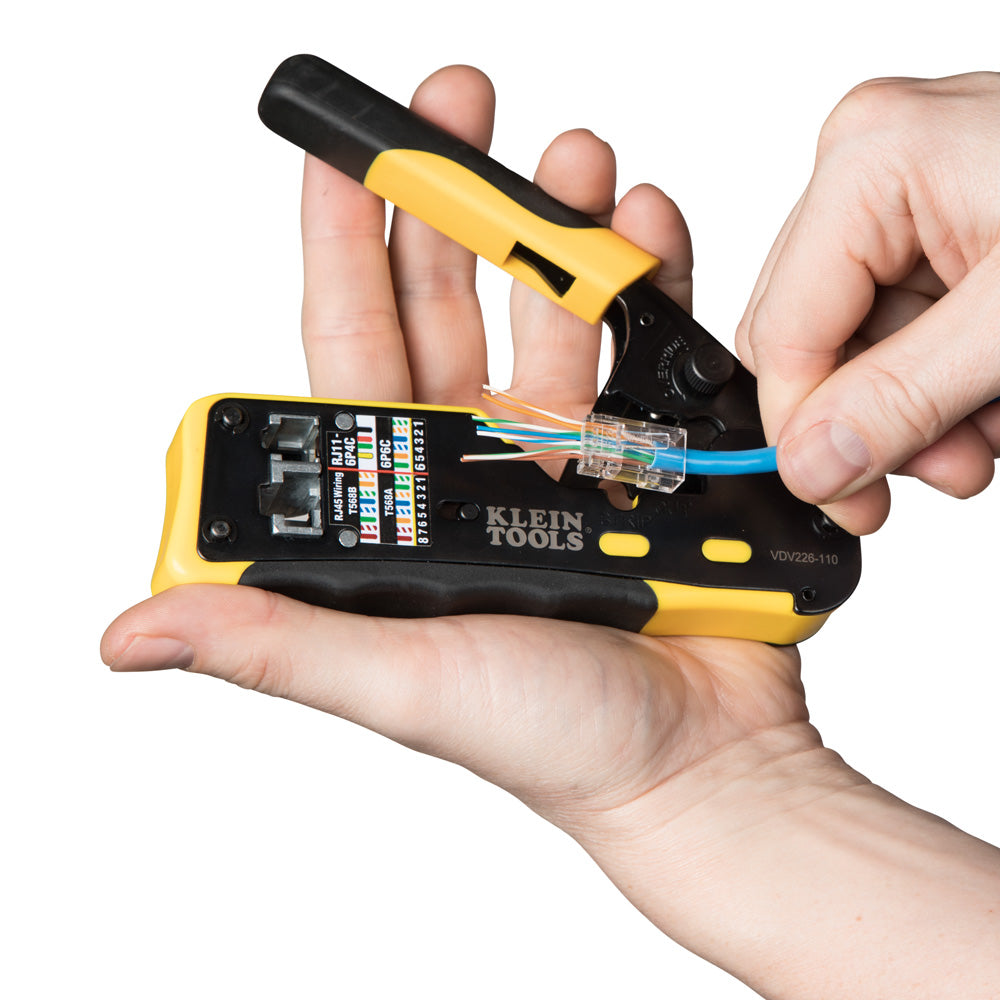

Crimp multiple types of connectors (RJ11, RJ12, Klein’s Pass-Thru Connectors and standard RJ45) with Klein’s VDV226-110. It also cuts and strips data cables giving you one tool that does everything you would need to terminate cable.

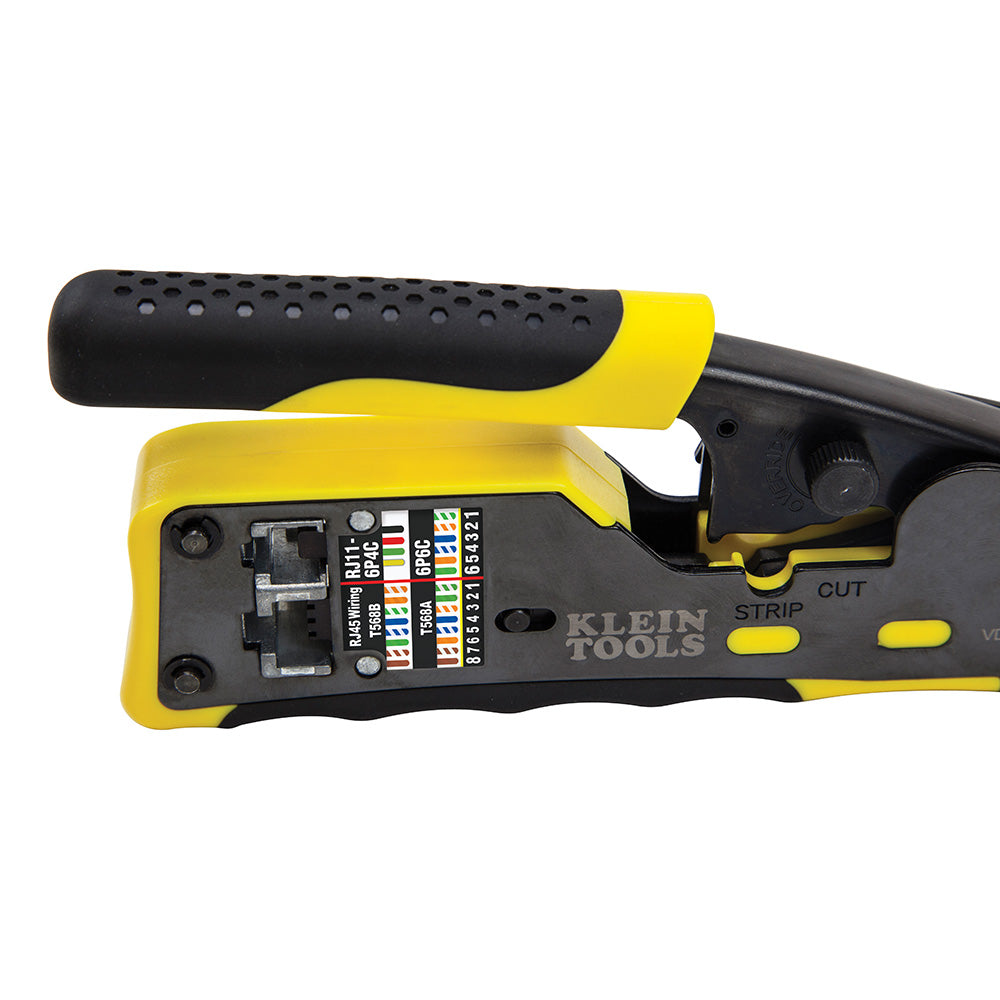

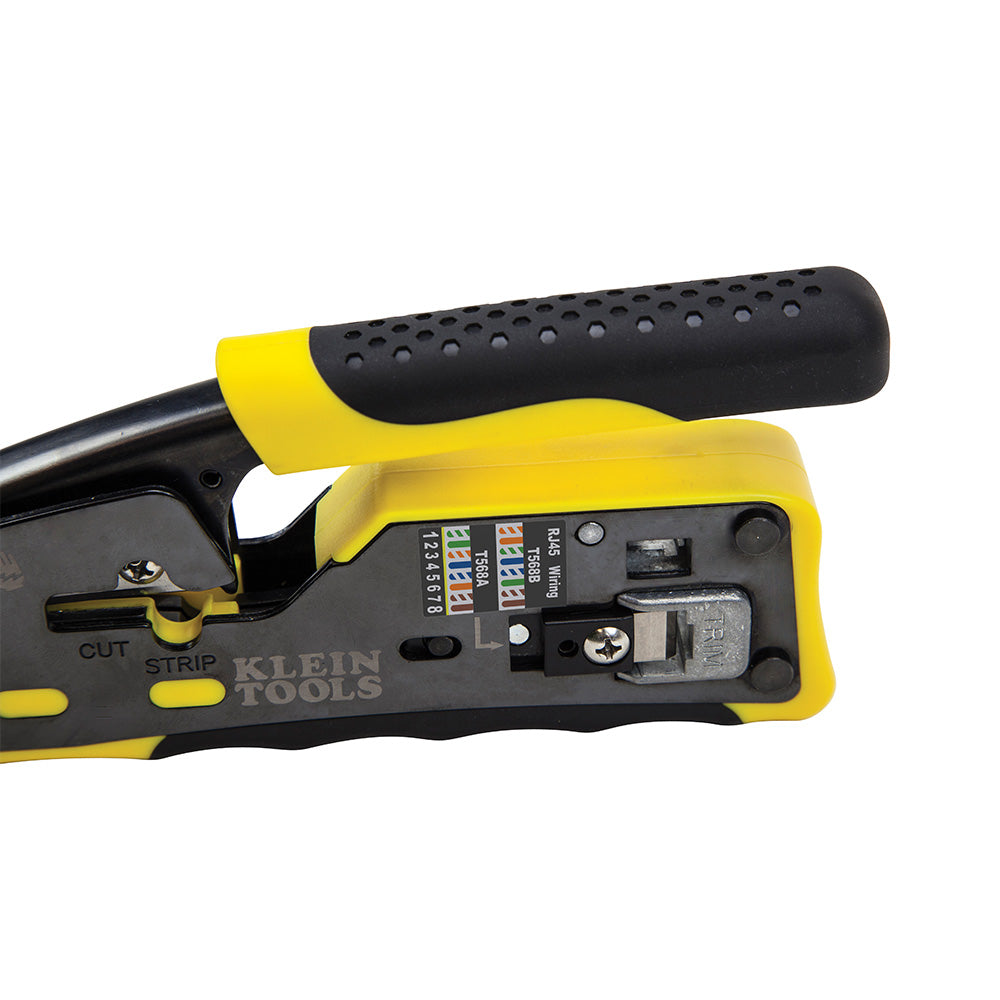

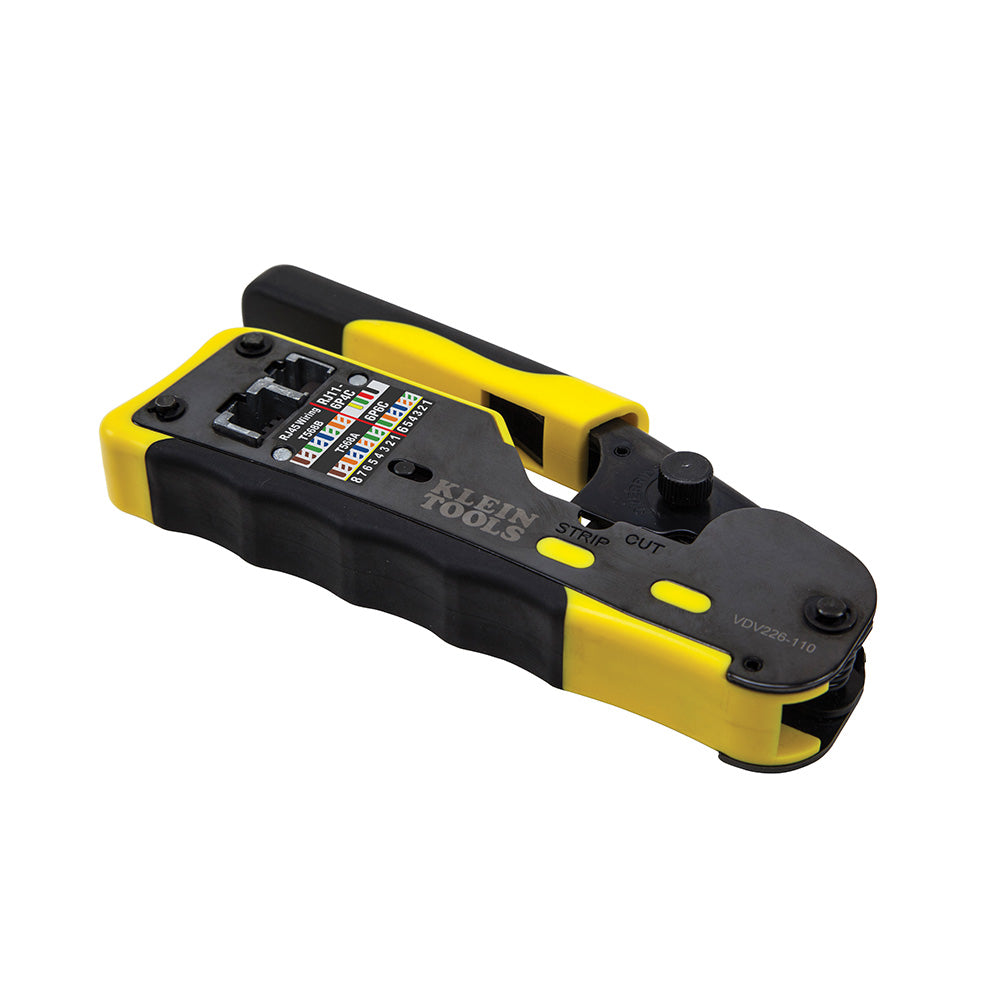

“Cheat Sheet” for proper position of wires is clearly displayed on the tool.

Designed to prevent contact between conductors which ensures proper connection.

Specifications
General Information
Brand
Klein Tools
Part Number
VDV226-110
Product Type
Crimper
Application
Cable Connection
Packaging
Retail
UPC
092644690945
California Residents
Proposition 65 Warning
Physical Characteristics
Length
6.094'' (154.8 mm)
Weight
0.41 kg
0.90 lb
Color
Yellow / Black
Material
Steel with Black Oxide
Details
Features
Fast, reliable modular crimp-connector install tool for voice and data applications with Pass-Thru RJ45 connector plugs
All-in-one tool cuts, strips and crimps paired-conductor data cables
Trims flush to end face of connector eliminating unintended contact between conductors
Crimps and trims Klein Tools RJ45 Pass-Thru™ Connectors
Crimps 4, 6 and 8 position modular connectors (RJ11/RJ12 standard and RJ45 Klein Tools Pass-Thru™)
Full-cycle ratchet mechanism ensures complete connector termination
On-tool wiring guide helps minimize wiring errors
Cable parameters: 28-22 AWG flat or round; solid or stranded telephone and data
Rubber grip for added comfort
Ratcheting locking mechanism
Use with Klein Tools Pass-Thru™ Connectors
Not for use with standard (non Pass-Thru™) connectors
Replacement blade set available (VDV999-076)
Resources
96523_PassThroughCrimperConnector_SellSheet_WebReady.pdf
Video
Our Pass-Thru Modular Crimper is a premium, long lasting tool that cuts, strips and crimps! Pass-Thru™ technology significantly reduces prep work time; tool wiring diagram on tool helps eliminate rework and wasted materials. Compact, non-slip comfort grip reduces hand strain and stores easily. For use with Klein Pass-Thru™ Connectors (VDV826-728, VDV826-729, VDV826-702, VDV826-703, VDV826-763).

This short instructional video gives you a quick overview of how to use Klein’s Pass-ThruTM Modular Crimper (VDV226-110) using Klein’s Pass-ThruTM connectors.

Why would you use this tool for ?
About manufacturer

Klein Tools is the result of one of those “happy accidents” that turn out to be revolutionary. Klein Tools famously got their start in 1857 when a linesman came to founder Matthias Klein to repair his broken pliers. Klein replaced the broken half and when the old half of the tool broke too, Klein forged a replacement for that, thus making the first Klein Linesman pliers. Since these humble beginnings, Klein Tools has grown and become one of the largest American made toolmakers and they’re a brand used by tradesmen, linesman and electricians all across America.
