Stahlwille 98814935 Line Maintenance Set In Tool Trolley

$9,599.99 USD & FREE Shipping.
/
Extended Handling May Be Required
  • For maintenance work on aircraft and helicopters
  • In extremely robust and durable tool trolley made of polypropylene
  • For professional use
  • 5 easily removable drawers with transparent lids:
  • With pull-out stop in 2 different heights
Overview

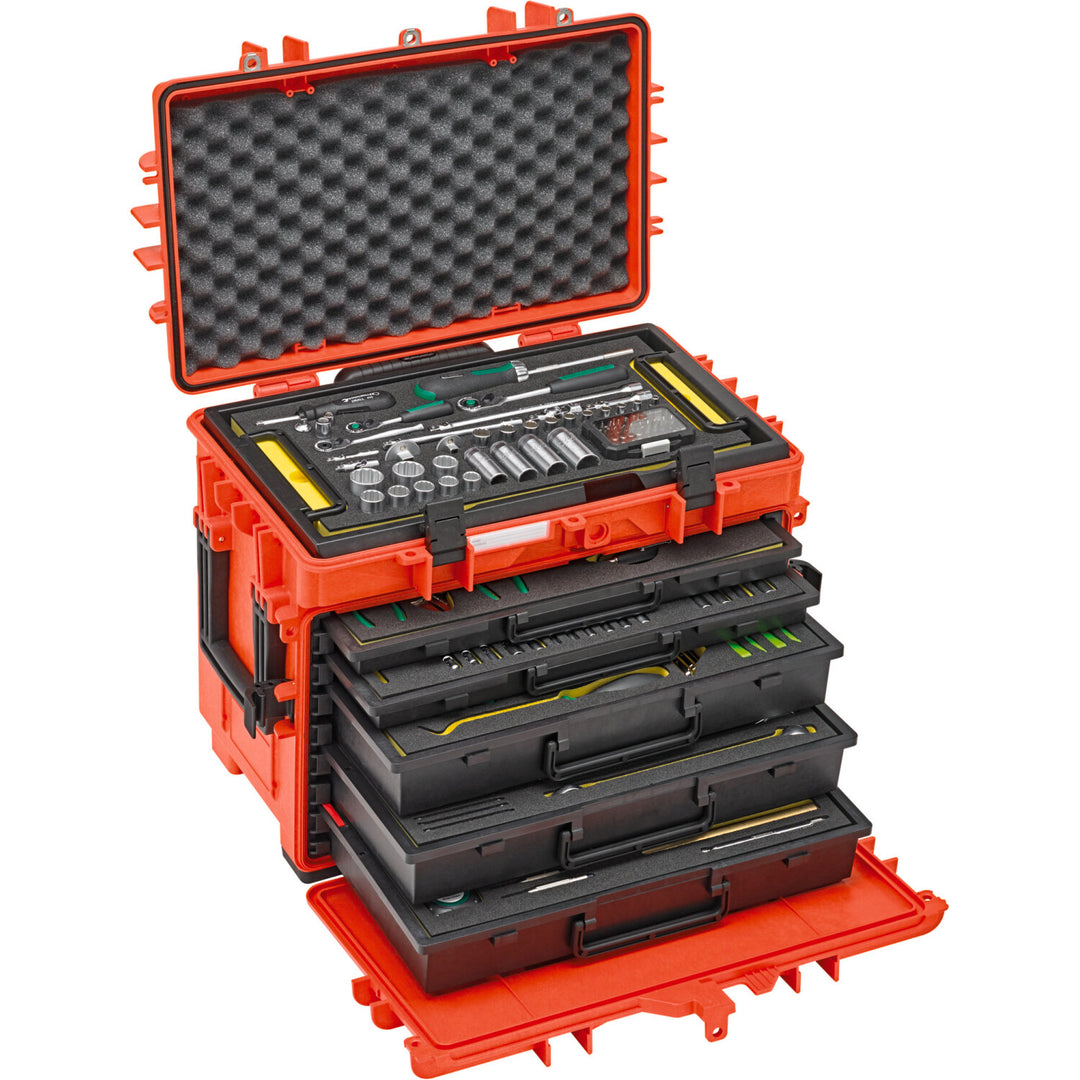

The Line Maintenance Set In Tool Trolley is designed for maintenance work on aircraft and helicopters and is suitable for professional use. It is housed in an extremely robust and durable tool trolley made of polypropylene, ensuring reliable performance in demanding environments. The trolley features five easily removable drawers with transparent lids for clear visibility and organized storage. These include one removable tray with two handles, as well as two transparent drawer covers beneath the top tray. At the telescopic handle side, two smooth-running double castors provide stable and controlled mobility. The drawers can also be used as a separate toolbox thanks to the transparent lids, offering flexibility during maintenance tasks. A pull-out stop in two different heights supports secure handling and convenient access to the contents. The design includes one top cover and one removable cover at the front for added protection and accessibility. An extendable telescopic handle and two side carry handles allow comfortable transport and handling. The tool trolley is resistant to Skydrol, acetone, petrol, and hydraulic oils, making it suitable for aviation maintenance environments. It can be locked in three positions with a padlock for added security and is safely integrated into the modular Tool Control System (TCS).
Brand img

Stahlwille 98814935 Line Maintenance Set In Tool Trolley

You may also like
Specifications
General Information
Brand
Stahlwille
Number of Pieces
163

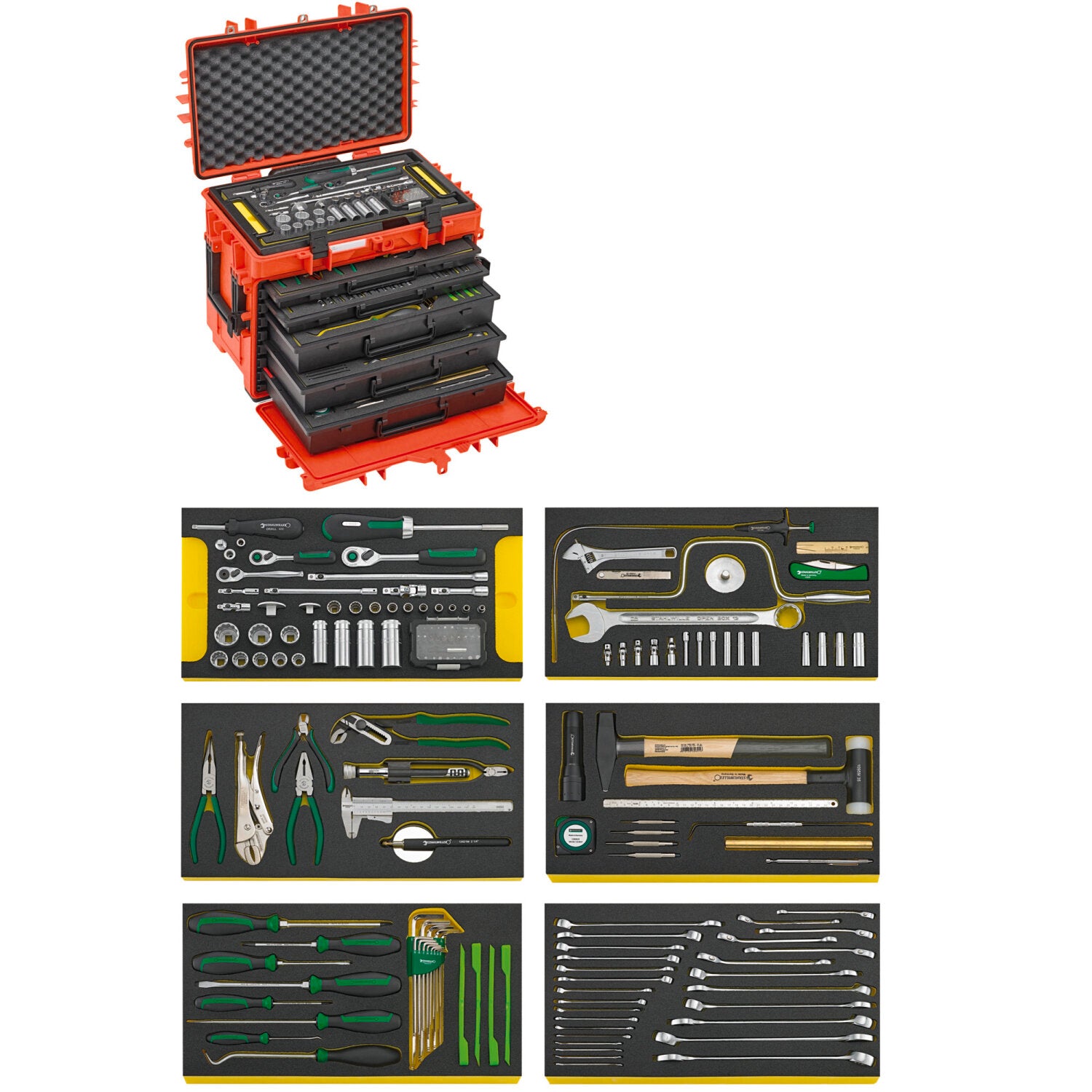

What's Included

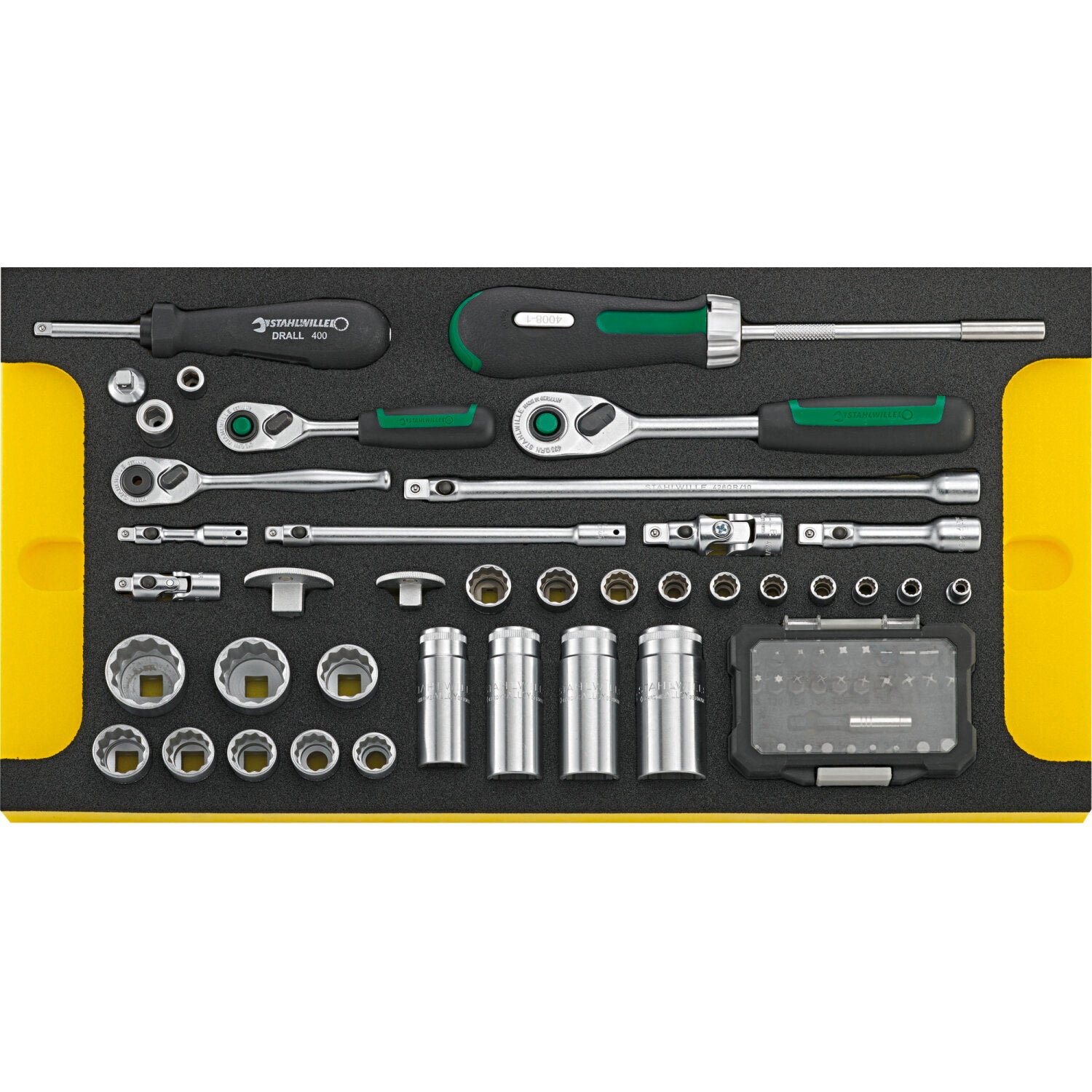

10 sockets with double hex 1/4" No. 40aD: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
8 sockets with double hex 3/8" No. 45a: 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 15/16; 1
4 sockets with double hex 3/8" No. 46a: 5/8; 11/16; 3/4; 7/8
2 QuickRelease extensions 1/4" No. 408QR: L.55 150 mm
1 QuickRelease universal joint 1/4"No. 407/1QR: L.45 mm
1 transition piece 1/4" to 3/8" No. 409M: L.13 mm
1 QuickRelease fine-tooth ratchet 1/4" No. 415QR N: L.117 mm
1 Bit fine-tooth ratchet 1/4" No. 415SGB N: L.117 mm
1 Bit holder 1/4" No. 412: L.25 mm
2 QuickRelease extensions 3/8" No. 426QR: L.75 ; 240 mm
1 QuickRelease universal joint 3/8" No. 428/1QR: L.60 mm
1 Reducer 3/8" to 1/4" No. 431: L.28 mm
1 Transition piece 3/8" to 1/2" No. 432M: L.16 mm
1 QuickRelease fine-tooth ratchet 3/8" No. 435QR N: L.193 mm
1 Bit holder 5/16" No. 443: L.32 mm
1 Bit ratchet 1/4" No. 4008-1
1 Bit set No. 1208: 1 Quick-release holder 1/4" | L.25mm: SL4.5;6.5;8mm | PH1;2;3 (2x) | T6;15;20 | T-SET 4;6;8;10 (2x) | INHEX 5/64;9/64;1/8;3/16;5/32;7/64;3/32;7/32" | adaptor 1/4" 4KT/6KT | 30-piece
1 Plug-in handle 1/4" No. 400: L.150 mm

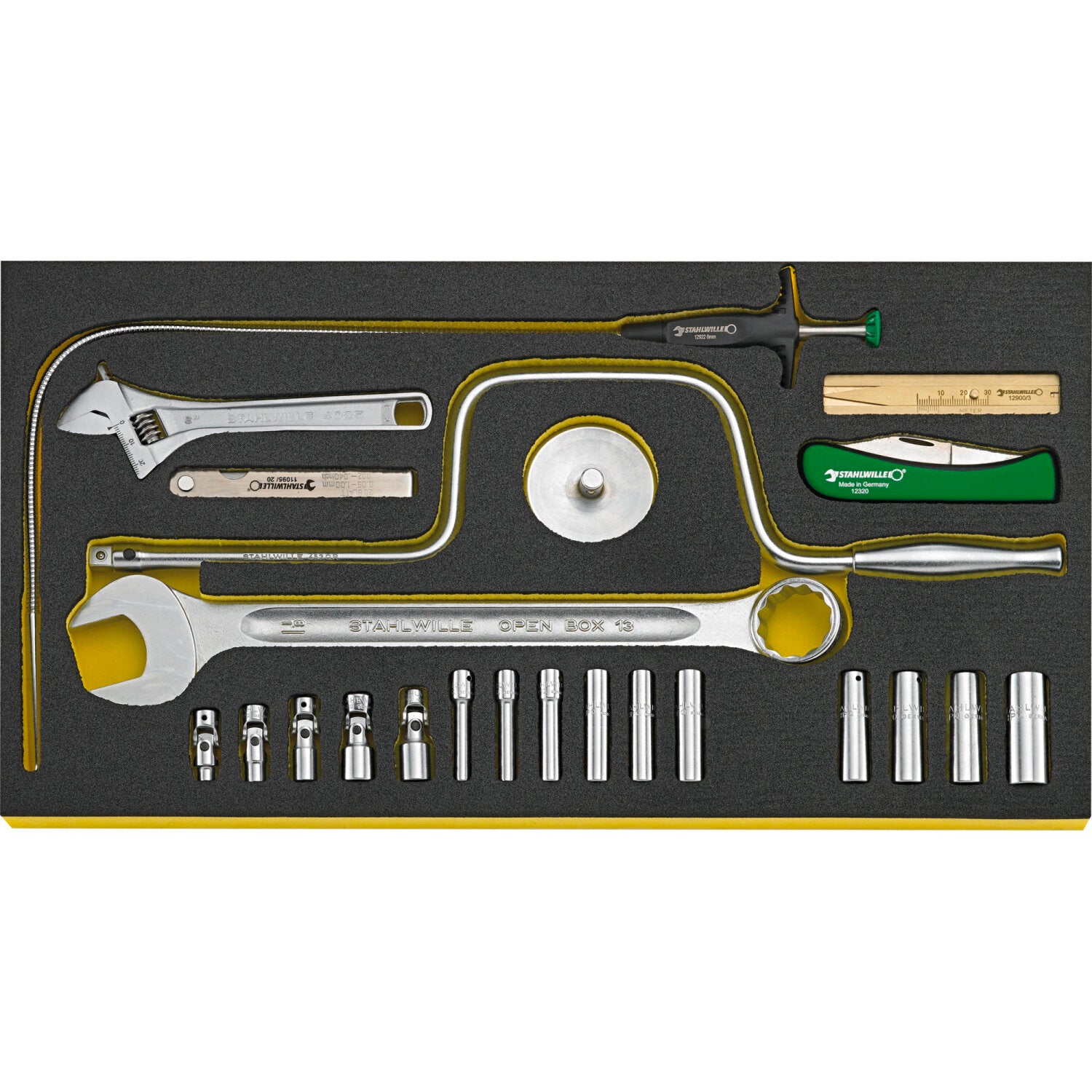

96831107, TCS 13214A/1 WT/LM 2
1 QuickRelease crank 3/8" No. 453QR: L.408 mm
1 Precision feeler gauge No. 11095/20: 0.05; 0.10; 0.15; 0.20; 0.25; 0.30; 0.35; 0.40; 0.45; 0.50; 0.55; 0.60; 0.65; 0.70; 0.75; 0.80; 0.85; 0.90; 0.95; 1.00 mm
1 Cable gauge No. 12320: blade length 90 mm
1 claw gripper No. 12922: L.540 mm
1 Tyre tread gauge No. 12900/3: L.150 mm
1 Combination spanner, adjustable No. 4025 6, SW max.24 mm
1 Combination spanner OPEN BOX No. 13a: 1.1/8" L.330 mm
10 Sockets with double hex, long 1/4" No. 40aDL: 3/16; 7/32; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16"
5 Articulated sockets with double hex 1/4" No. 402a: 1/4; 5/16; 3/8; 7/16; 1/2"
96831108, TCS 13214A/1 WT/LM 5

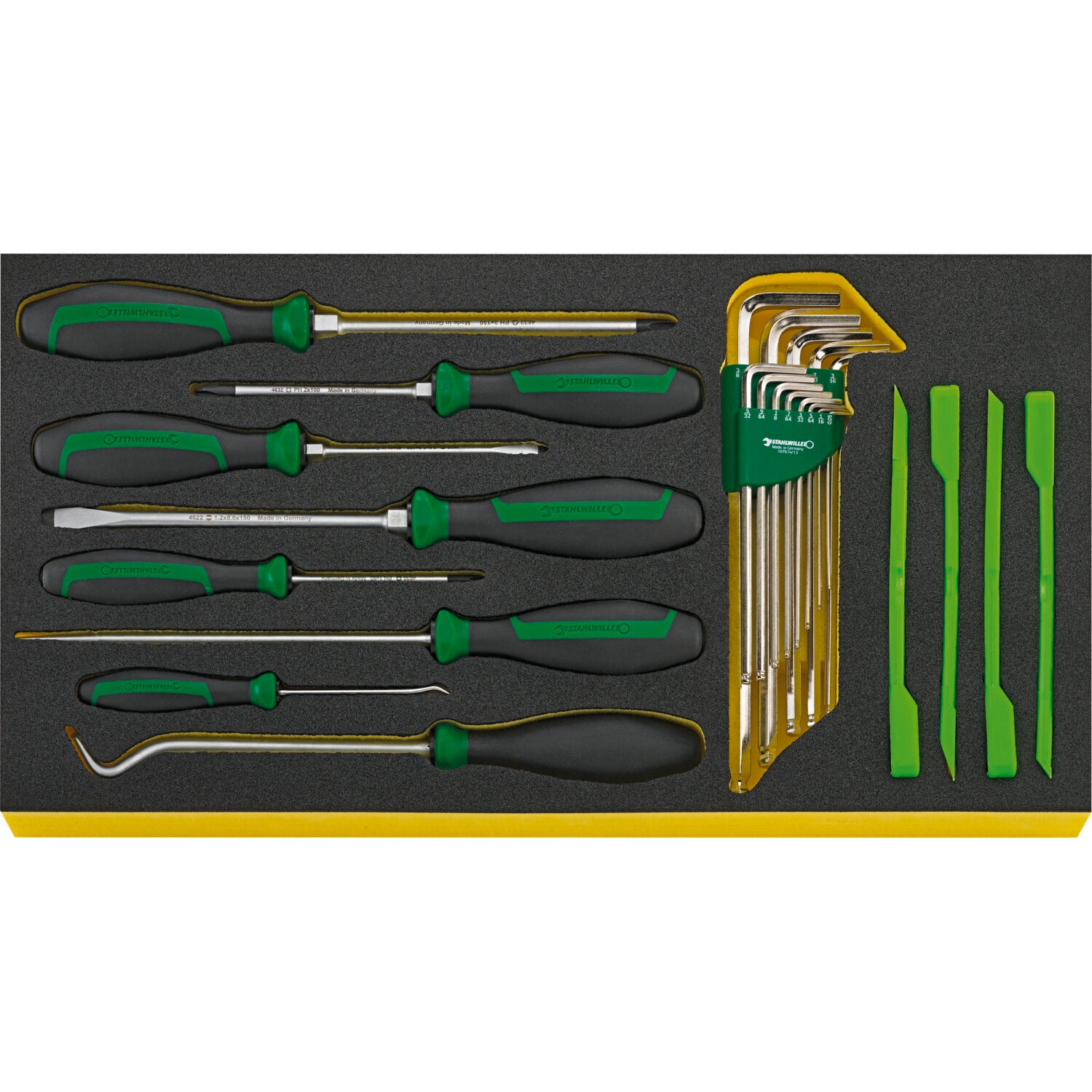

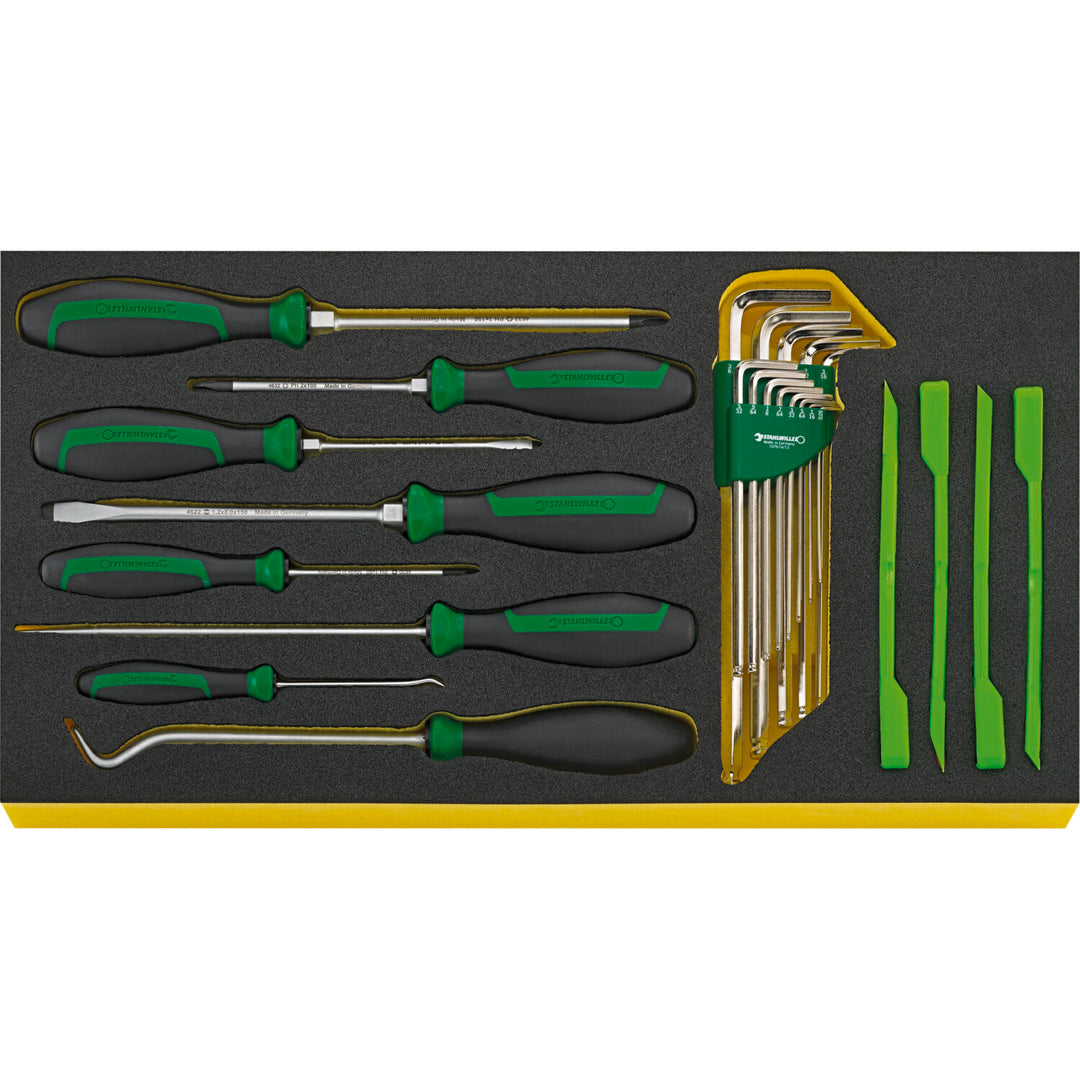

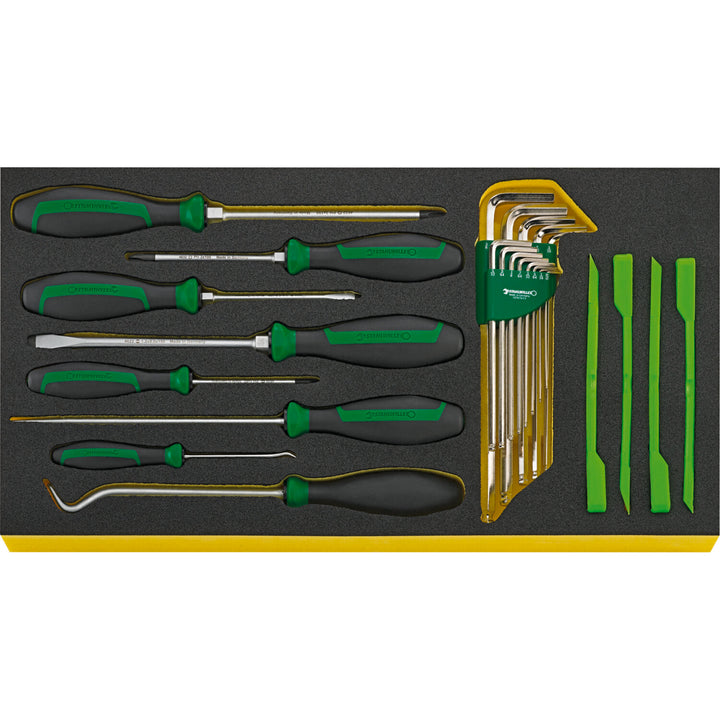

1 plastic scraper No. 10681: L.175 mm
1 Plastic scraper No. 10680: L.174 mm
1 Plastic scraper No. 10679: L.170 mm
1 Plastic scraper No. 10678: L.170 mm
2 DRALL+ flat-blade screwdriver No. 4622: 1.0 x 5.5 X 100; 1.2 x 8.0 x 150 mm
3 PHILLIPS® screwdriver No. 4632: PH1; PH2; PH3
1 Round awl No. 10758: L.280 mm
1 Hook tool No. 13001: 45° angled L.155 mm
1 Offset screwdriver set No. 10767a/13: 0.05; 1/16; 5/64; 3/32; 7/64; 1/8; 9/64; 5/32; 3/16; 7/32; 1/4; 5/16; 3/8"
1 Split pin punch No. 13009: L.265 mm
96831109, TCS 13214A/1 WT/LM 6

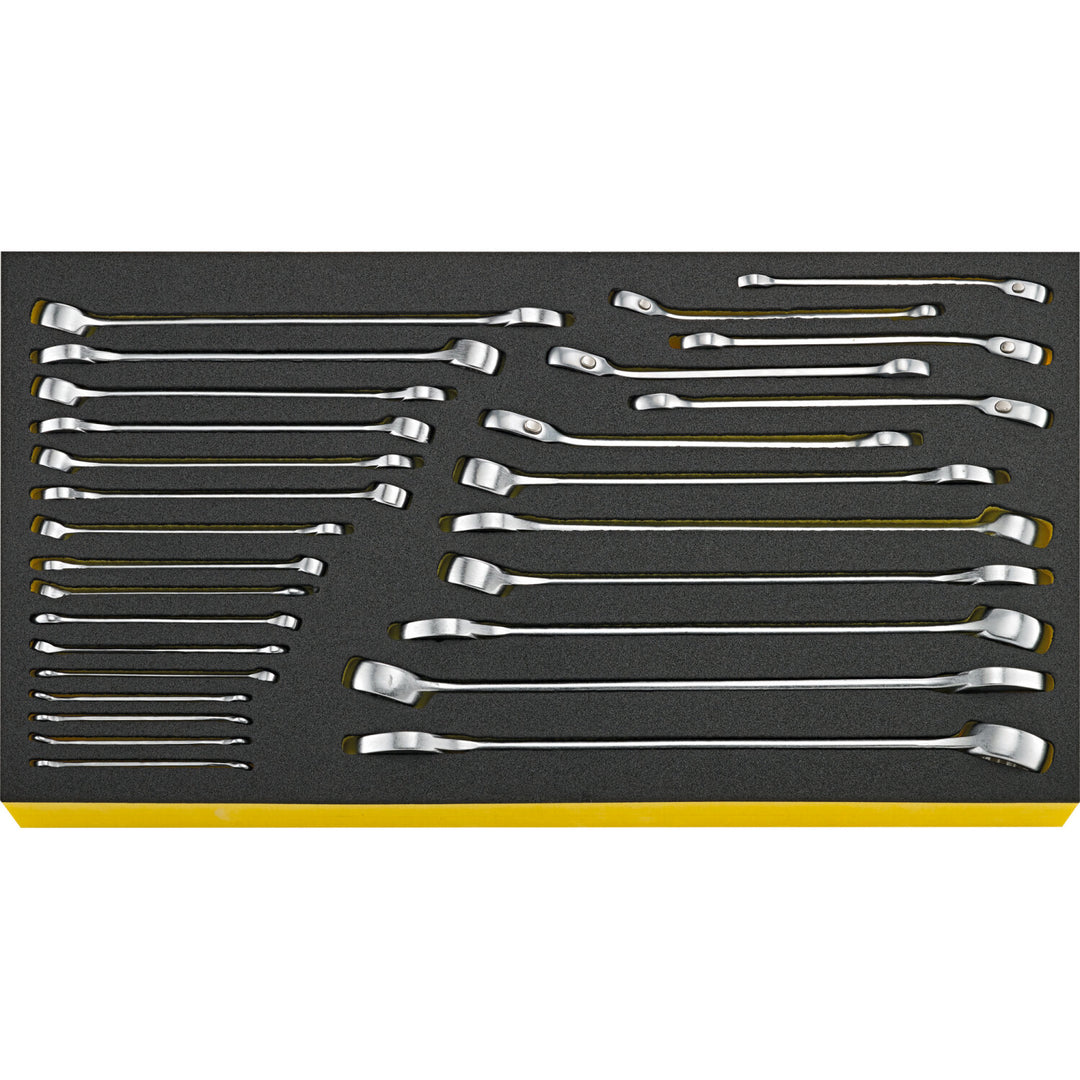

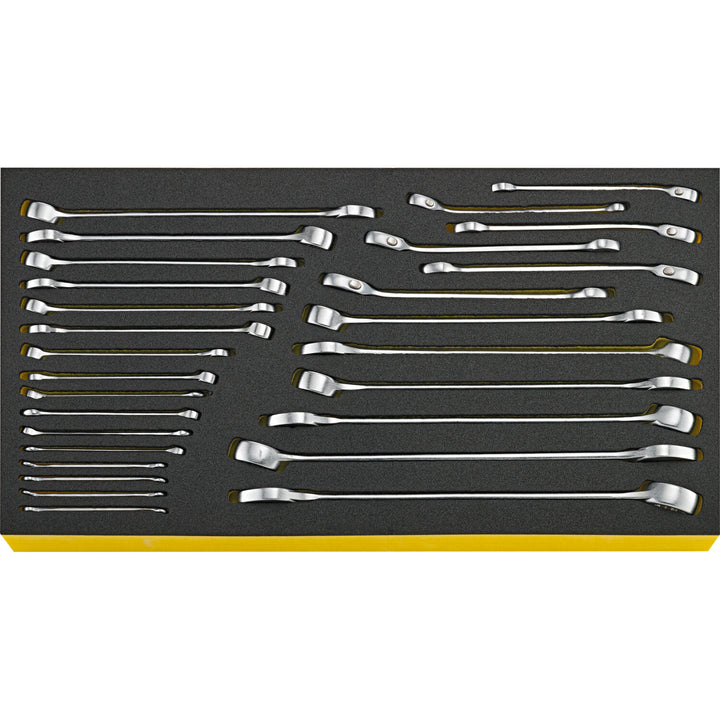

22 Combination spanners OPEN BOX No. 13a: 3/16; 13/64; 7/32; 15/64; 1/4; 9/32; 5/16; 11/32; 3/8; 7/16; 1/2; 9/16; 19/32; 5/8; 11/16; 3/4; 25/32; 13/16; 7/8; 15/16; 1. 1/16"
6 Ratchet ring open-end spanners angled No. 17a: 1/4; 5/16; 3/8; 7/16; 1/2; 9/16"
96831102, TCS 13214/1 WT/LM 3

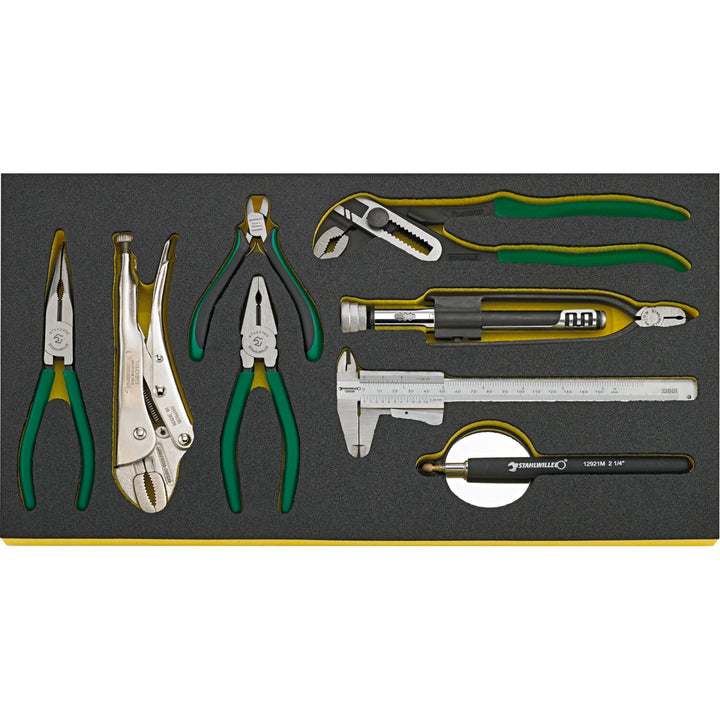

1 Caliper No. 12900N: L.150 mm
1 Telescopic mirror No. 12921M: L.178-921 mm
1 Water pump pliers FastGRIPNo. 6572: L.240 mm
1 Wire twist pliers No. 6575 1: L.230 mm
1 Grip pliers No. 6564 2: L.175 mm
1 Electronic side cutter No. 6707: L.115 mm
1 Combination pliers No. 6700: L.160 mm
1 Telephone pliers No. 6731: L.200 mm

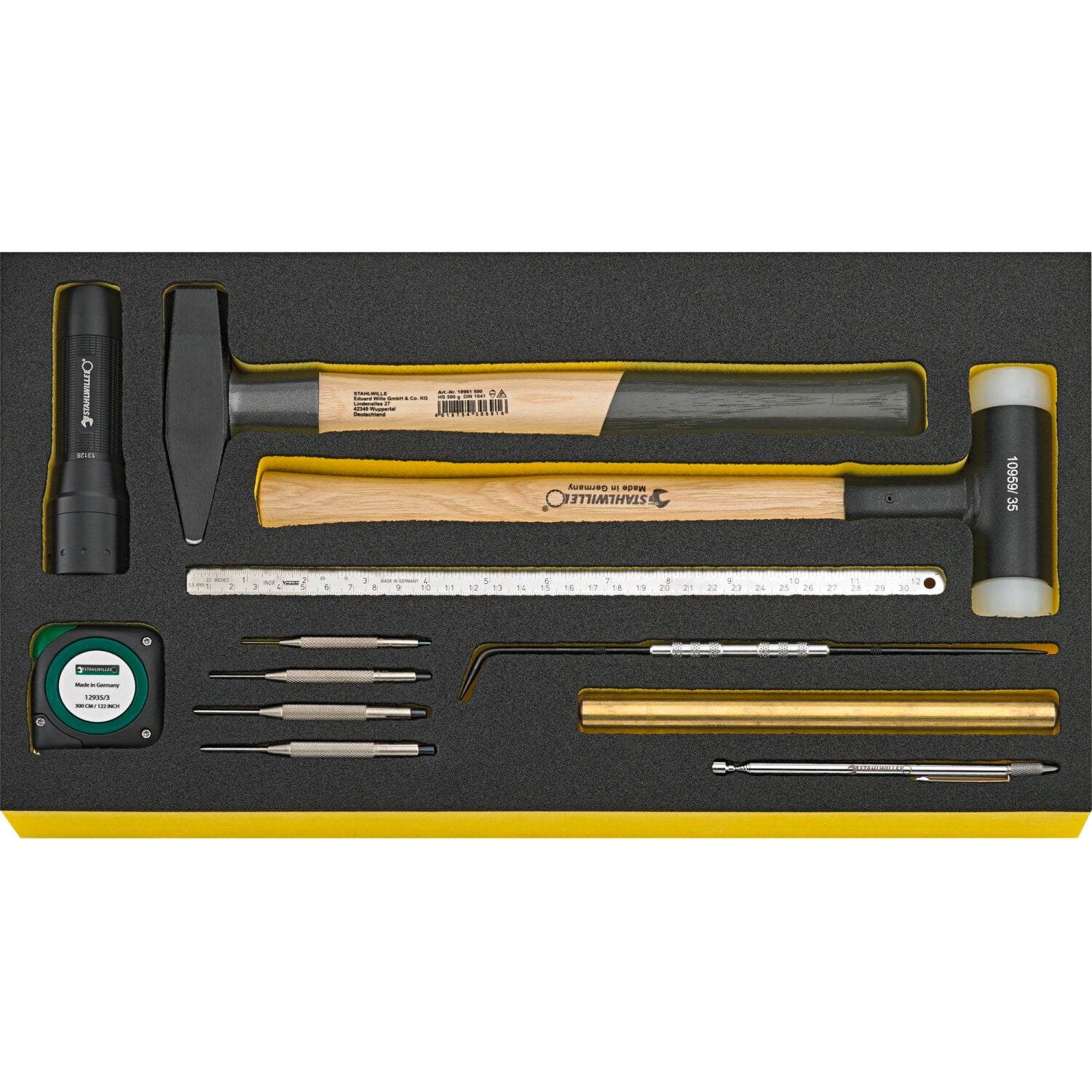

96831103, TCS 13214/1 WT/LM 4
4 Pin punches No. 109: 1.4; 2.8; 3.4; 3.9 mm
1 Locksmith's hammer No. 10961: 500 g
e hammer No. 10959: D.35 mm
1 Steel rule No. 13110: L.300 mm
1 Brass mandrel No. 12495: L.200 mm
1 Scriber No. 12321: L.250 mm
1 Pin magnetic lifter No. 12601: L.145 mm
1 Roller tape measure No. 12935/3: L.3 m
1 LED torch No. 13128: L.130 mm
Country of Origin
Germany
UPC
4018754335275
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Part Number
98814935
Product Type
Line Maintenance set (inch) in tool
Physical Characteristics
Length
381 mm
Width
581 mm
Height
455 mm
Weight
29.44 kg
64.90 lb
Details
Features
For maintenance work on aircraft and helicopters
In extremely robust and durable tool trolley made of polypropylene
For professional use
5 easily removable drawers with transparent lids:
With pull-out stop in 2 different heights
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
