Dimensions and Specifications

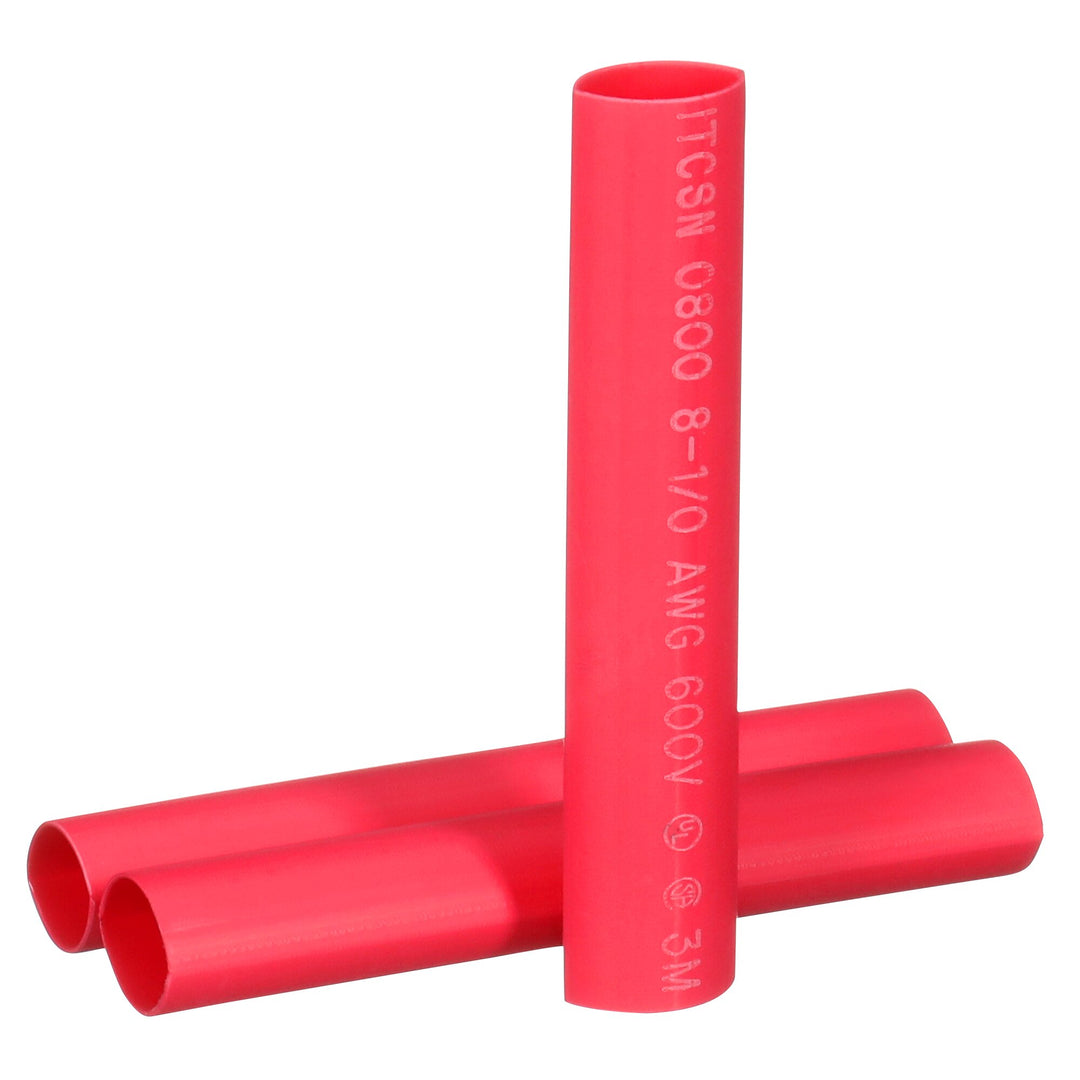

Cable Size Range
8-1/0 AWG
Expanded Inner Diameter
0.8 in
Expanded Inner Diameter (Metric)
20.3 mm
Inner Diameter After Shrink (Imperial)
0.2 in
Inner Diameter After Shrink (Metric)
5.1 mm
Inner Diameter Before Shrink (Imperial)
0.8 in
Inner Diameter Before Shrink (Metric)
20.3 mm
Maximum Operating Temperature (Celsius)
110 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
230 Degree Fahrenheit
Maximum Voltage Rating
1 kV
Minimum Shrink Temperature (Celsius)
121 Degree Celsius
Minimum Shrink Temperature (Fahrenheit)
250 °F
Operating Temperature (Celsius)
-55 to 100 Degrees Celsius
Operating Temperature (Fahrenheit)
-67 °F to 230 °F
Operating Temperature Range (Celsius)
-55 °C to -100 °C
Operating Temperature Range (Fahrenheit)
-67 °F to 230 °F
Overall Length (Imperial)
6 in
Overall Length (Metric)
152.4 mm
Recovered Inner Diameter
0.2 in
Recovered Inner Diameter (Metric)
5.1 mm
Tensile Strength (Imperial)
2400 Pound-Force Per Square Inch
Voltage
1 kV
Voltage Rating
UL Rated to 600 V (Shall not exceed 1 kV)
Operating Temperature Celsius
-55 to 100 Degrees Celsius
Overall Length Imperial
6.0
Width
7.8 in
19.8 cm
Height
5.31 in
13.5 cm
Length
10.31 in
26.2 cm
Volume
427.36 cubic inch
7003.26 cm3
Weight
24 oz
680.39 g
