Regular price
/

$961.29 USD & FREE Shipping.
  • Potential Index and Dielectric Absorption Ratios
  • Tests Continuity, Resistance and Frequency Measurements
  • Programmable Alarms
  • Insulation Test, Resistance, Continuity
  • Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
Overview

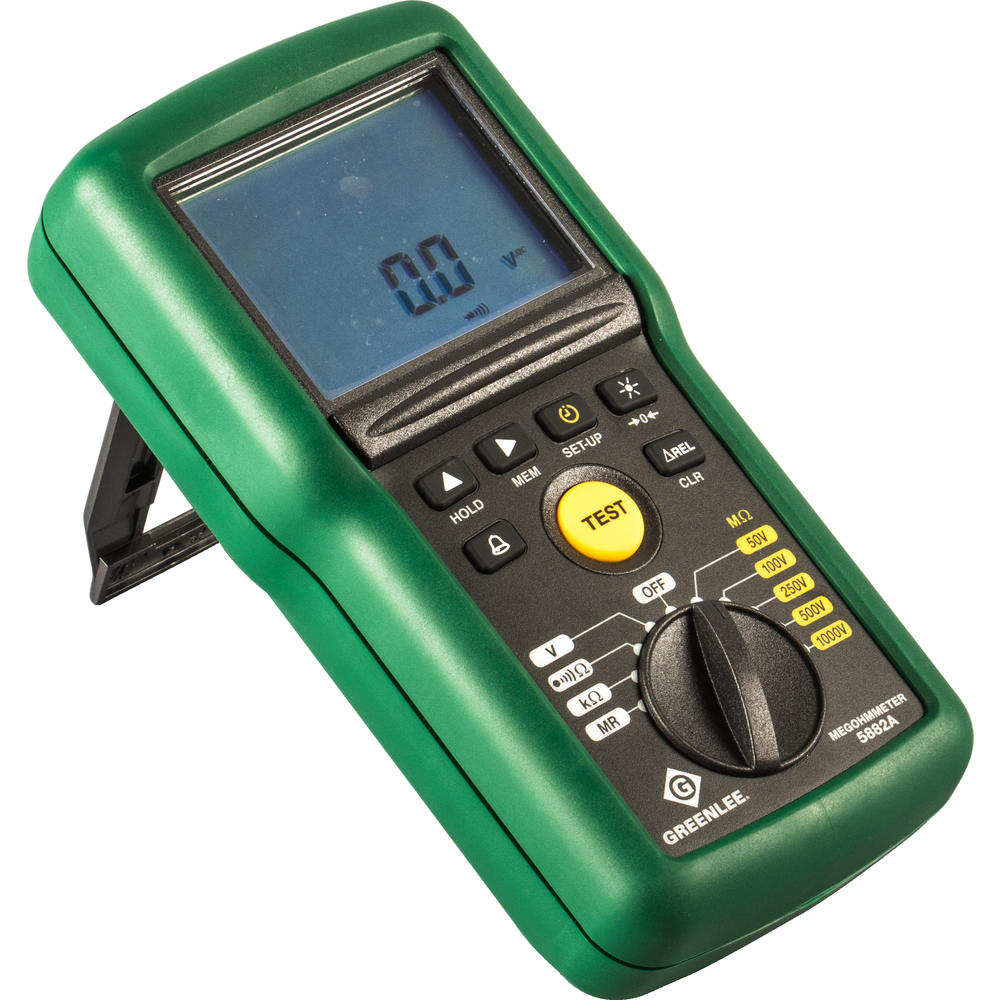

Greenlee 5882A-C Calibrated 1kV Megohmmeter/Insulation Tester

Greenlee 5882A-C Calibrated 1kV Megohmmeter/Insulation Tester

Specifications
General Information
Brand
Greenlee
Part Number
5882A-C
Product Type
Megohmmeter/Insulation Tester
Application

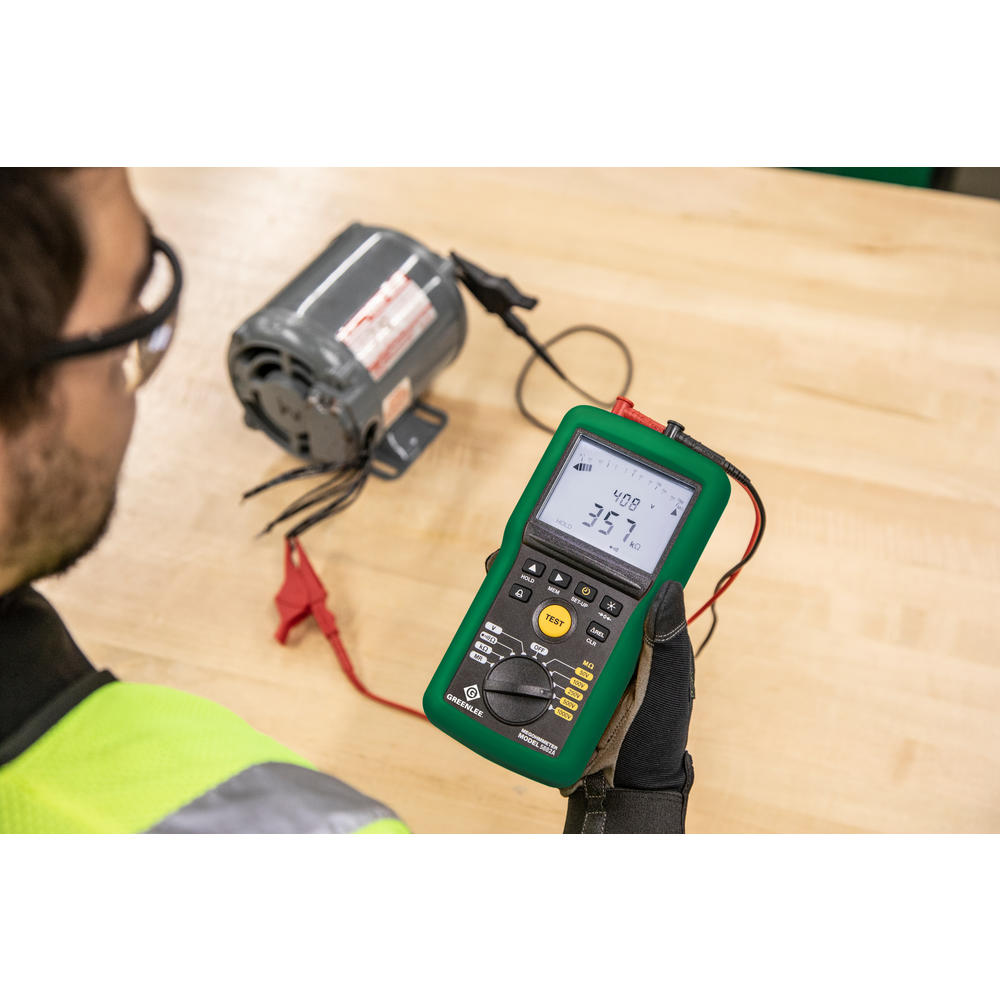

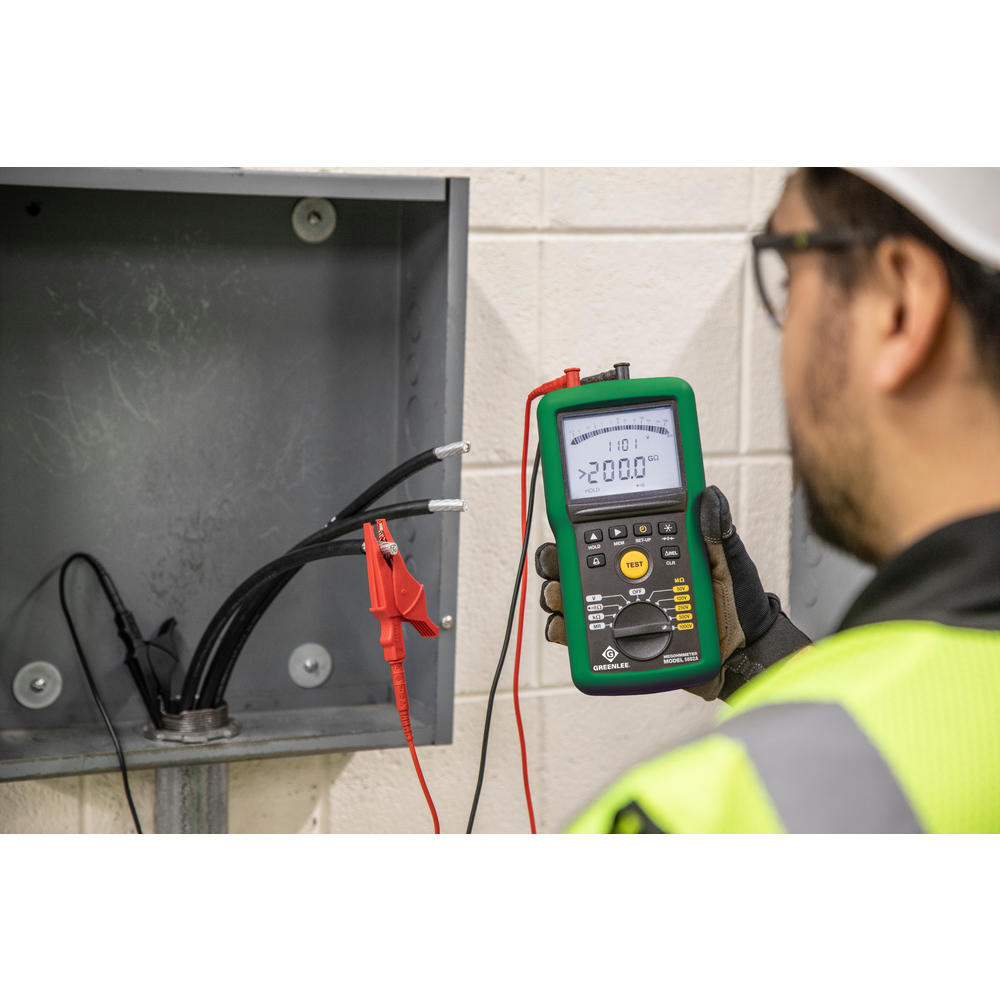

Insulation Testing Cable and Rotary Equipment
What's Included

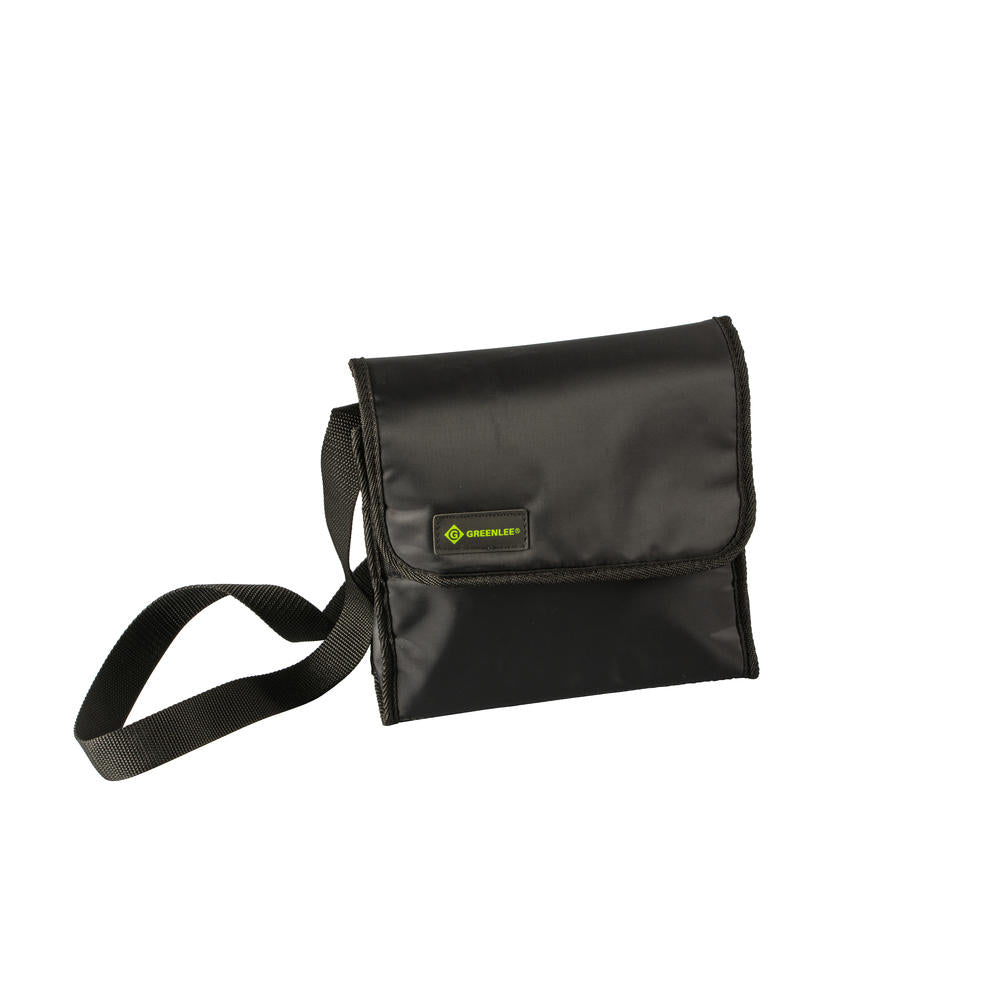

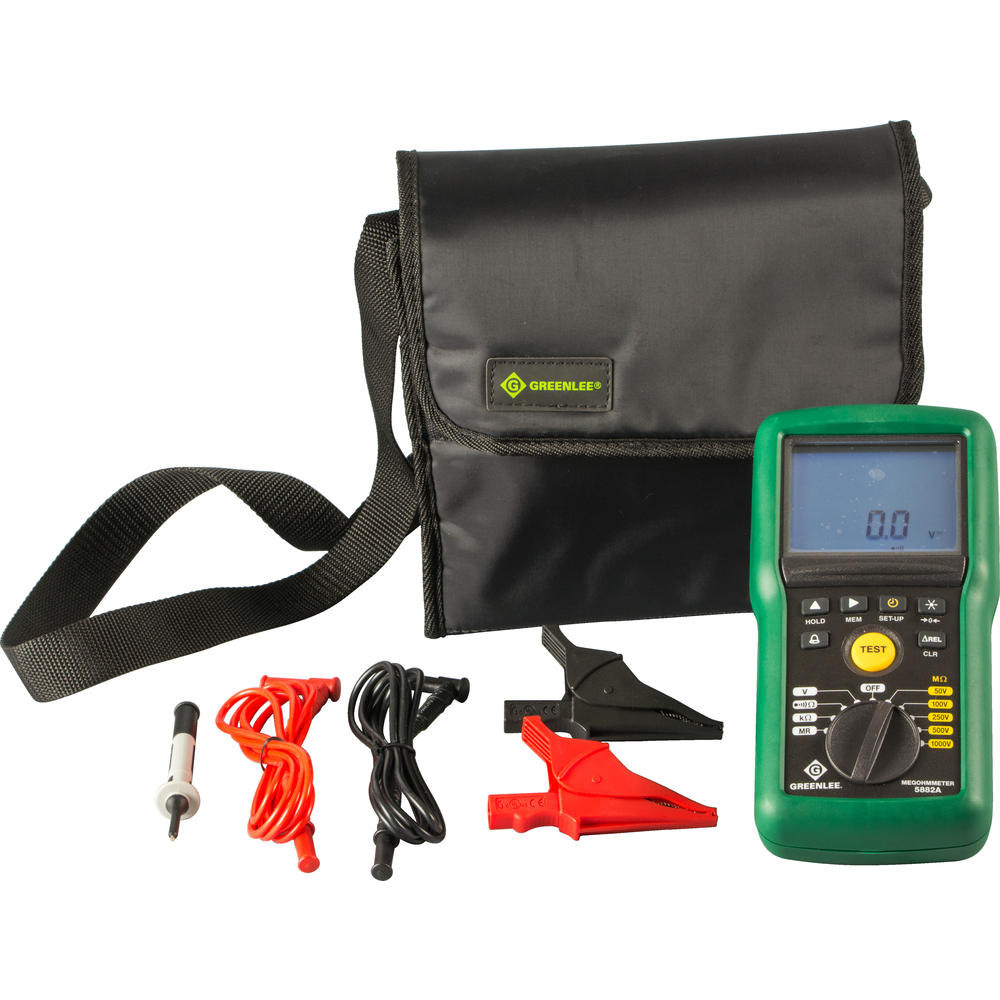

5882A Test Lead Kit, 1kV Megohmmeter 5882A Carrying Case, 1kV Megohmmeter
Packaging
Retail
Country of Origin
France
UPC
783310084815
California Residents
Proposition 65 Warning
Physical Characteristics
Weight
2.10 kg
4.63 lb
Details
Measurement Standard
1kV
Features
Calculations (automatic)
Potential Index and Dielectric Absorption Ratios
Tests Continuity, Resistance and Frequency Measurements
Programmable Alarms
Insulation Test, Resistance, Continuity
Hazardous Voltage Alert (Icon) if voltage is >70 volts 5.) On Board Timer, +1/- 1 sec.
Delta Reading "ΔREL"
Data hold with 300 Entry Memory
Standby Mode (automatic), saves battery power
Hand Held, Compact Light Weight Form

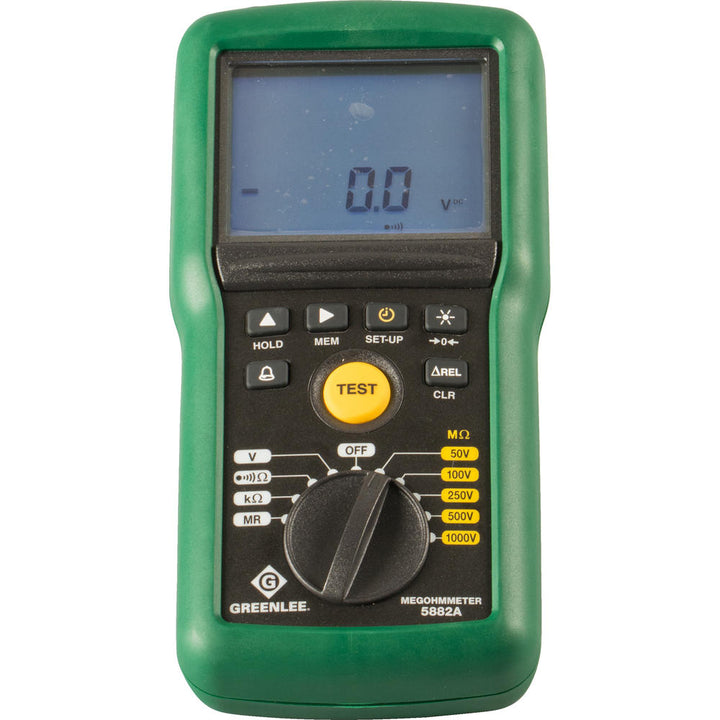

Intuitive Layout with Rotary Function Selector and Large Test Button

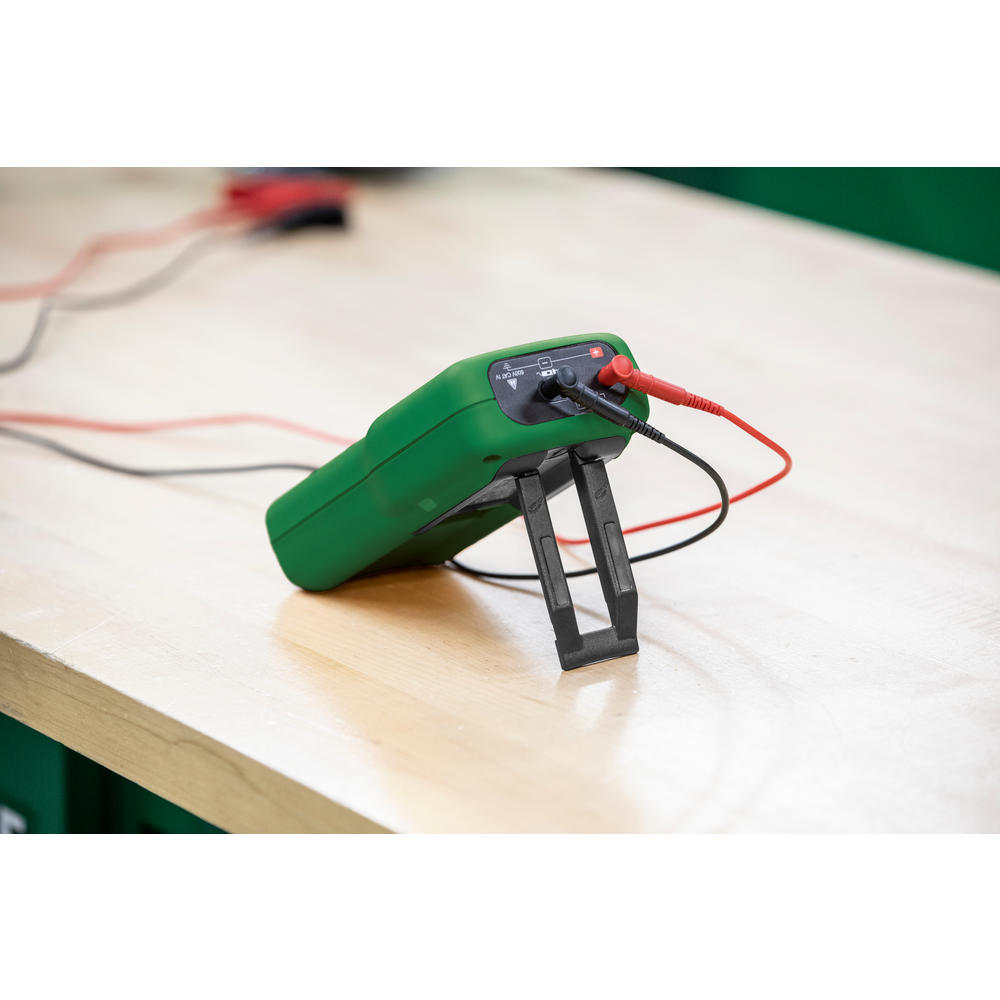

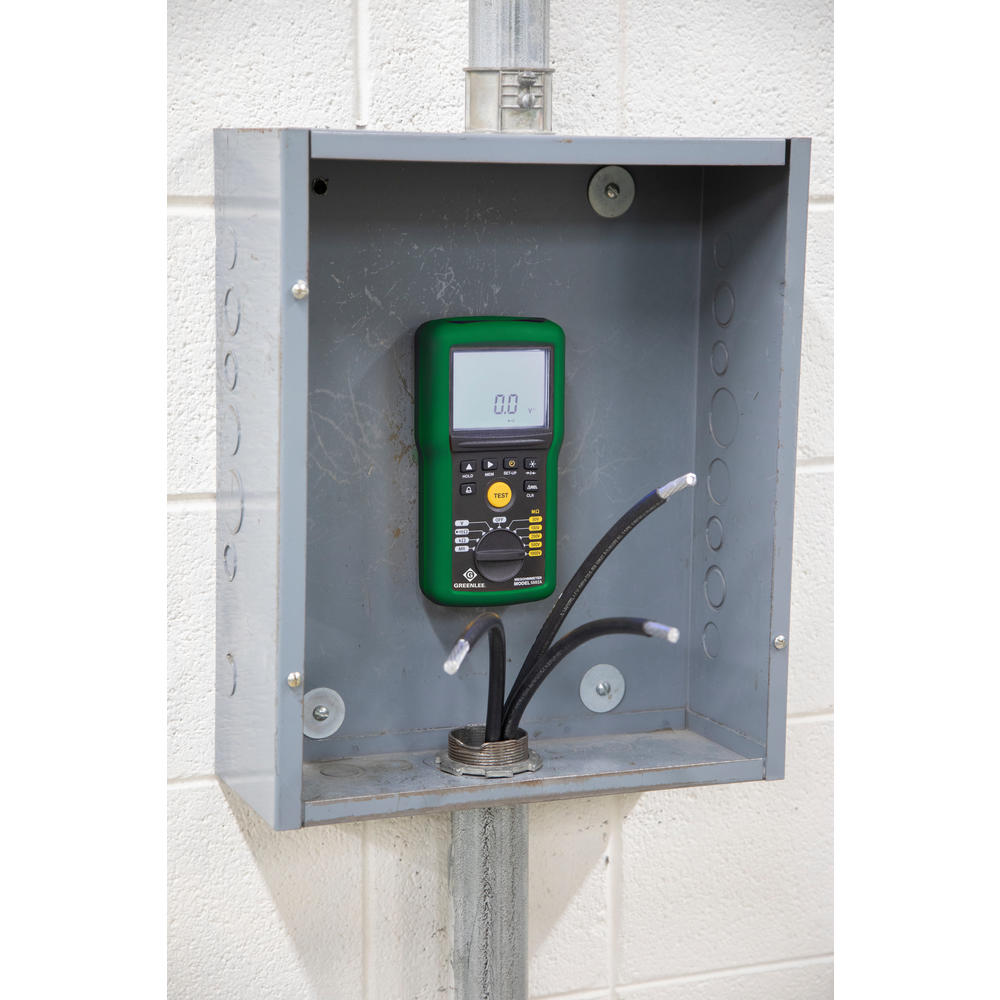

Molded in Magnetic Mount for convenient hands-free measurements
Limited Life Time Warranty
Dated Calibration Certification

Automatic Discharge: Yes [on completion of insulation test]
Continuity Range: <100Ω
Range: 10kΩ to 200GΩ
Test Voltage: 50V, 100V, 250V, 500V, 1kV
Type: Hand Held
Voltage

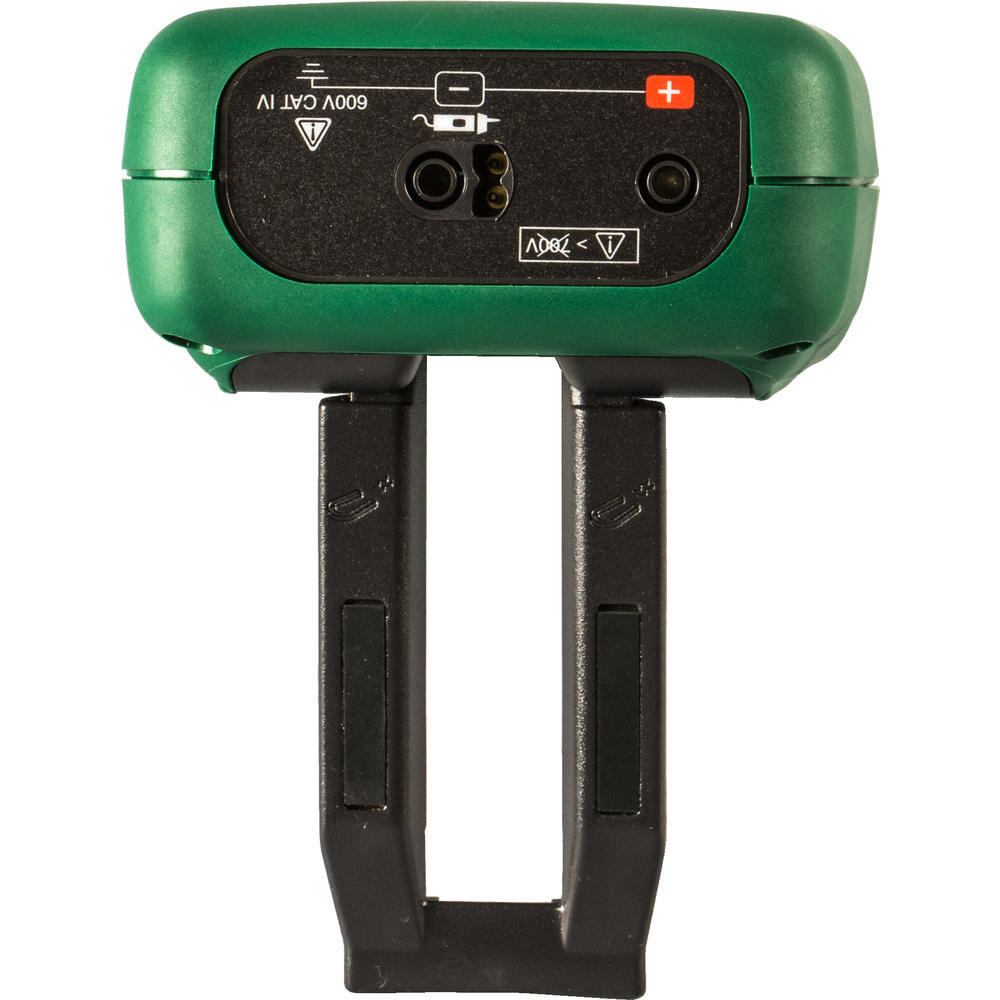

CAT IV, 600V
Resistance (Ohms)
0Ω to 1000kΩ
Display Type
LCD Large/Bright, easy to read Analog Bar Graph and Digital
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
