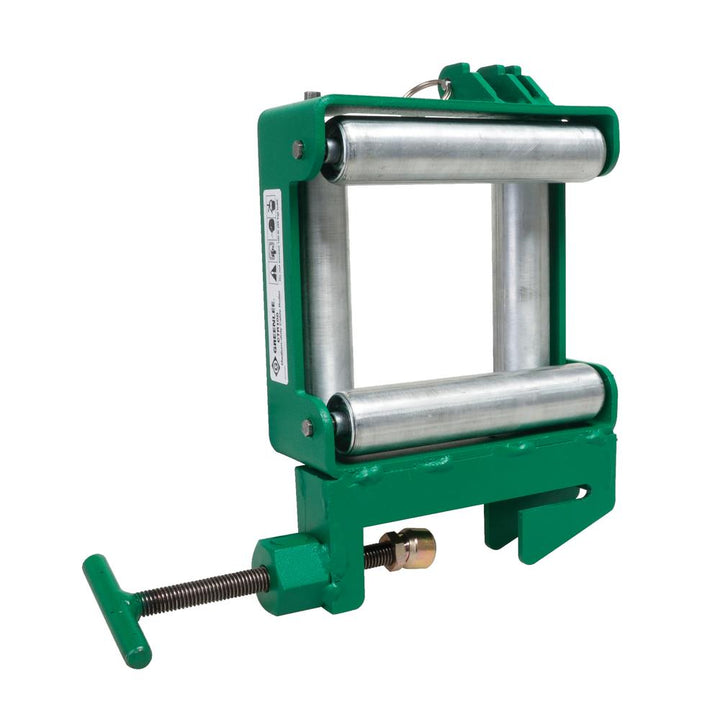

Greenlee CTR100 Medium Duty Cable Roller
Greenlee CTR100 Medium Duty Cable Roller
Greenlee CTR100 Medium Duty Cable Roller
Greenlee CTR100 Medium Duty Cable Roller

Greenlee CTR100 Medium Duty Cable Roller

Regular price
/

$511.48 USD & FREE Shipping.
  • 2 times faster setup and disconnect
  • No loose pieces
  • Quick adjust tilted thread nut to tightly fasten onto tray

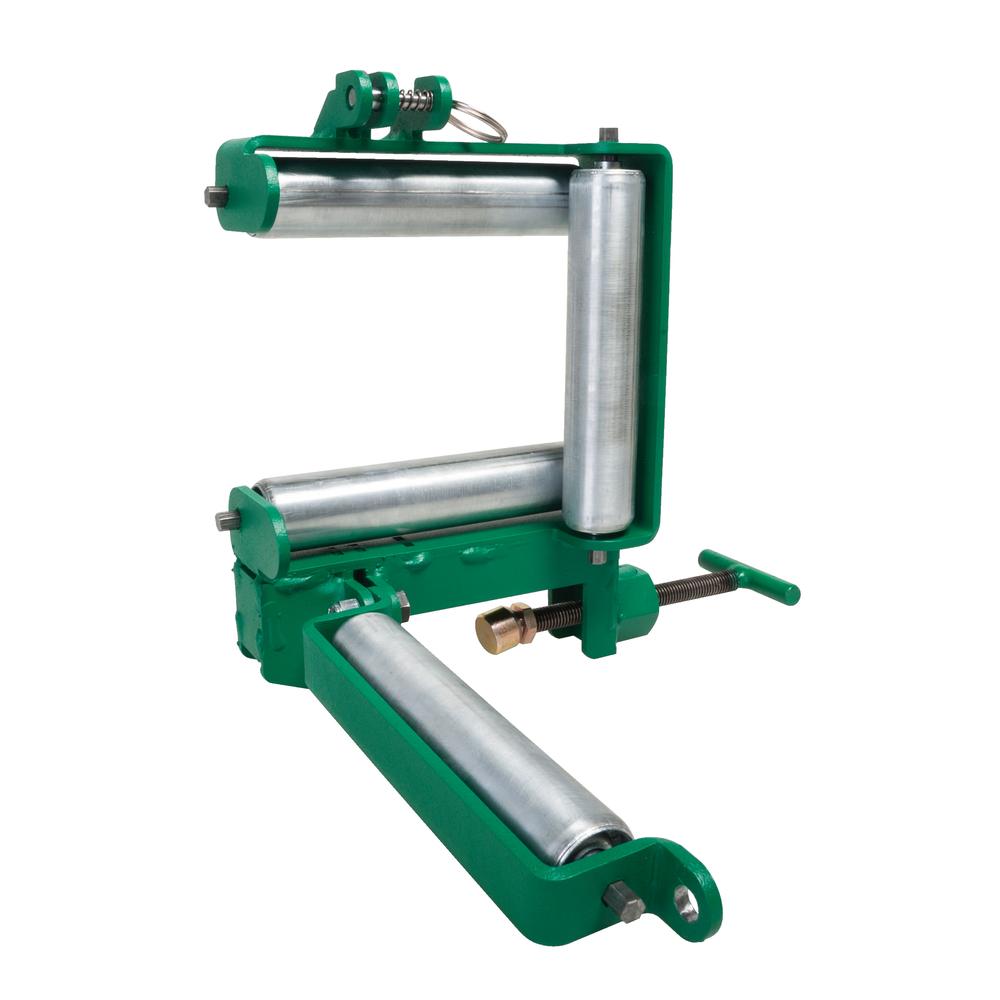

  • 4 conveyer roller guide with retained spring pull-pin release to easily remove cable
  • Closed conveyer roller guide that traps cable within guide without damaging cable jacket
Overview
The Greenlee CTR100 Medium-duty Cable Roller is intended for the installation of cables in cable tray. It is intended for non basket-style cable tray.

Greenlee CTR100 Medium Duty Cable Roller

Specifications
General Information
Brand
Greenlee
Part Number
CTR100
Product Type
Cable Roller
Application
Use to assist pulling cables along non basket-style cable trays. Designed to aid load forces during cable pulls especially right before 90° bends and offsets.
Packaging
Retail
Country of Origin
United States
UPC
783310028109
California Residents
Proposition 65 Warning
Physical Characteristics
Length
Retracted: 9-1/4'' (235 mm), Extended: 13-3/4'' (349.3 mm)
Height
11-1/8'' (282.6 mm)
Weight
4.62 kg
10.18 lb
Material
Steel
Details
Size
Roller Opening Size: 4'' (101.6 mm) square
Features
2 times faster setup and disconnect
No loose pieces
Quick adjust tilted thread nut to tightly fasten onto tray
4 conveyer roller guide with retained spring pull-pin release to easily remove cable
Closed conveyer roller guide that traps cable within guide without damaging cable jacket
Easily handle forces of up to 100 lbs (45.4 kg)
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
