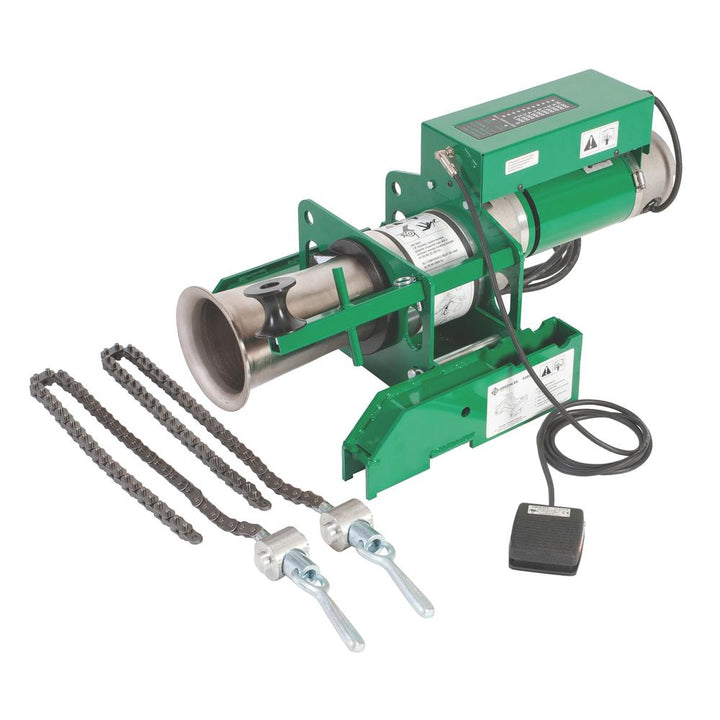

Greenlee 6901-22 UT10-22 Puller with Chain Mount
Greenlee 6901-22 UT10-22 Puller with Chain Mount

Greenlee 6901-22 UT10-22 Puller with Chain Mount

Regular price
/

$10,801.51 USD & FREE Shipping.
  • 2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range
  • Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB
  • Easy control features for increased productivity
  • On-board force gauge provides visual communication of pulling force and speed changes
  • Quick speed change from high-speed to low-speed by simply double tapping foot pedal
Overview

The Greenlee UT10 Ultra Tugger® Cable Puller is intended to be used to pull cable through conduit and in tray. The UT10 will develop 44.5 kN (10,000 lb) of pulling force. Refer to a Greenlee catalog for sheaves, pulling rope, and other cable pulling accessories to create an entire cable pulling system.

No single manual can provide instructions for every possible cable pulling application; this manual contains general information necessary to accomplish cable pulls of many different setups.

Greenlee 6901-22 UT10-22 Puller with Chain Mount

Specifications
General Information
Brand
Greenlee
Part Number
6901-22
Product Type
Puller Assembly
Application
For Cable Pulls Requiring High As Well As Low Pulling Loads
What's Included
(1) UT10-22 The Ultra Tugger® 10, (1) 02846 Chain Mount
Packaging
Retail
Country of Origin
United States
UPC
783310008132
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Weight
58.51 kg
129.00 lb
Details
Features
2-Speed motor that delivers the fastest pulling time for all pulling needs over the widest (10000 LB) range
Strong, rugged motor designed specifically for both big and small cable pulling applications up to 10000 LB
Easy control features for increased productivity
On-board force gauge provides visual communication of pulling force and speed changes
Quick speed change from high-speed to low-speed by simply double tapping foot pedal
Removable foot pedal for convenience
220 Volt

Capacity: 0 - 6500 LB (0 - 28.9 KN) Continuous Operation, 6500 - 8000 LB (28.9 - 35.6 KN) 15 MINT ON/15 MINT OFF, 8000 - 10000 LB (35.6 - 44.5 KN) Momentary
Speed: High Speed: 16 FT/MINT (4.88 MR/MINT) At No Load, 14 FT/MINT (4.27 MR/MINT) At 2000 LB (8900 N), 12 FT/MINT (3.66 MR/MINT) At 4000 LB (17.8 KN); Low Speed: 7 FT/MINT (2.13 MR/MINT) At 6000 LB (26.7 KN), 6 FT/MINT (1.83 MR/MINT) At 8000 LB (35.6 KN)
Voltage
220 V
Why would you use this tool for ?
About manufacturer
Greenlee

Founded in 1862, Greenlee Tools got its start as a toolmaker when two brothers needed to manufacture their invention (a special drill surrounded by chisels). With the success of this effort, the Greenlee brothers quickly took on making other woodworking tools and other machinery including a machine that laid track for the railroad. In the mid-80s and beyond, Greenlee added on other toolmakers and diversified the kinds of tools they make and now Greenlee manufactures tools used by tradesmen in all vocations from communications to hydraulic pumps, plumbing, telecom, test equipment and many more. Greenlee is widely recognized as an industry leader for quality hand and industrial tools.
