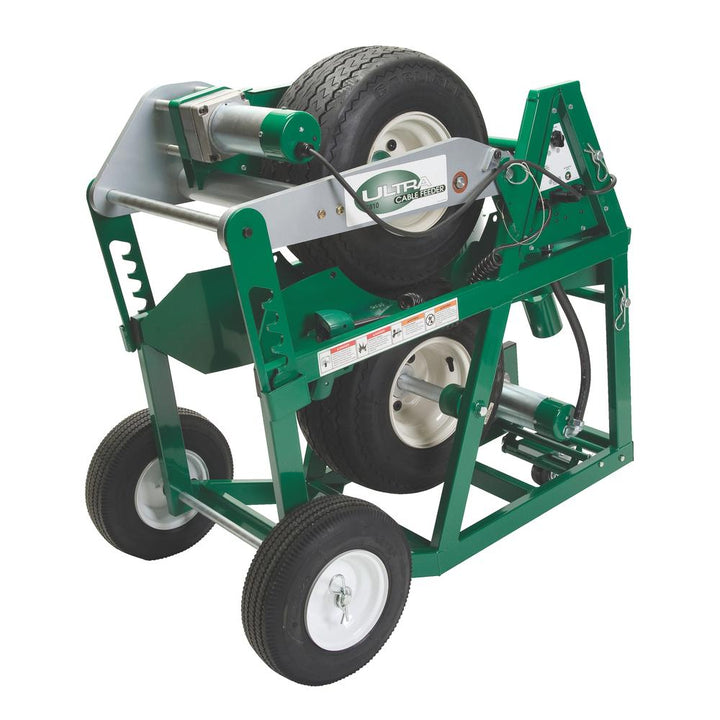

Greenlee 6810 Cable Feeder
Greenlee 6810 Cable Feeder

Greenlee 6810 Cable Feeder

Regular price
/

$9,897.60 USD & FREE Shipping.
  • Feeds cable at variable speeds to match the speed of cable puller
  • Accommodates cable ranging in size up to 3.5" (88.9mm) in diameter
  • Now with new tires for improved traction with low friction cables
  • Sets up easily and can be operated by just one person
  • Dual motors drive each wheel for traction on both sides of the cable
Overview

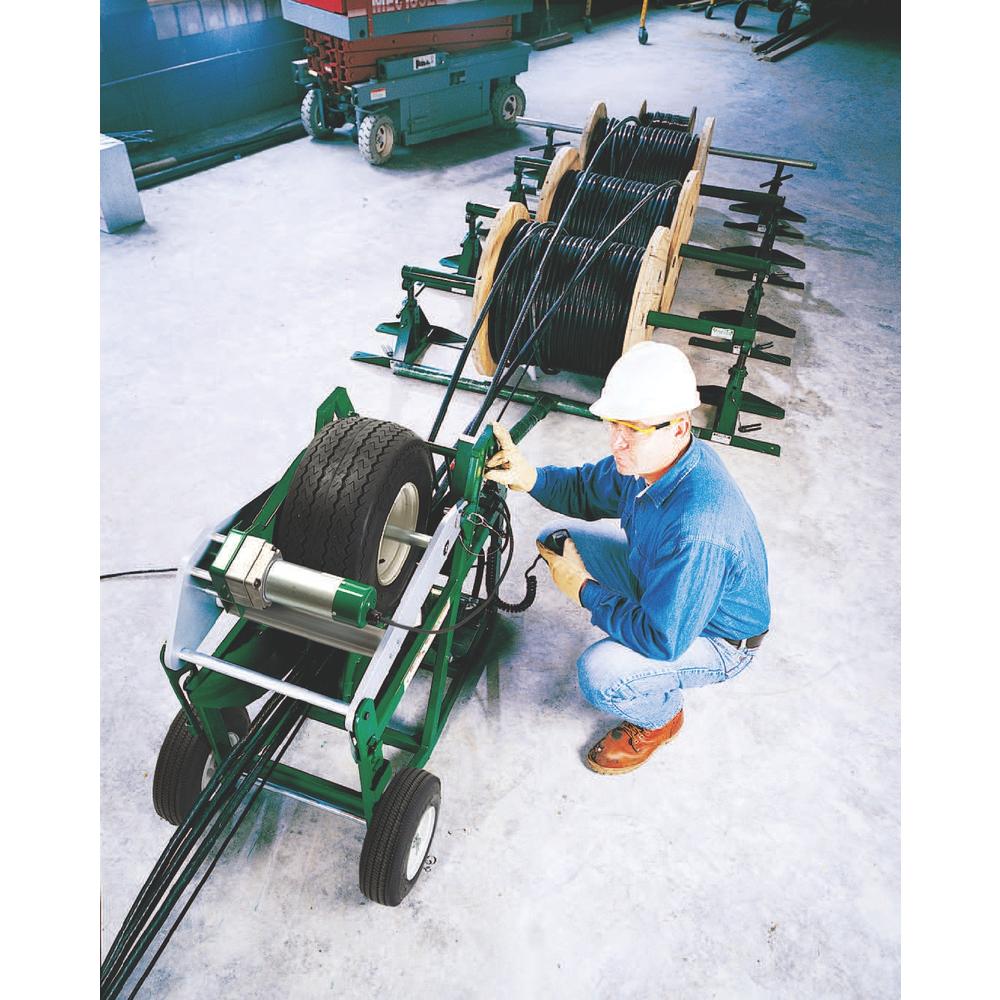

The Greenlee Ultra Cable Feeder is intended to pull cable off of reels to allow feeding the cable into conduit or cable tray. The Ultra Cable Feeder is not intended to pull cable or rope through conduit.

Greenlee 6810 Cable Feeder

Specifications
General Information
Brand
Greenlee
Part Number
6810
Product Type
Feeder Assembly
Application
Puller Feeding
Packaging
Retail
Country of Origin
United States
UPC
783310055648
California Residents
Proposition 65 Warning
Return Policy
NCNR - Non-Cancellable / Non-Returnable
Physical Characteristics
Weight
147.42 kg
325.00 lb
Details
Size
Cable: 8 x 250 MCM cable 6 x 500 MCM cable 5 x 750 MCM cable
Features
Feeds cable at variable speeds to match the speed of cable puller
Accommodates cable ranging in size up to 3.5" (88.9mm) in diameter
Now with new tires for improved traction with low friction cables
Sets up easily and can be operated by just one person
Dual motors drive each wheel for traction on both sides of the cable
Comes with pendant and toggle switch
An optional foot switch is available to control feeding
Two cable loading methods: top-loading and end-loading

Maximum Tractive Force: Single Cable: 200 lbs(.9kN) All Cables 800 lbs (3.5kN)
Load: Single Cable : approx. 890 N (200 lb) All Cables : approx. 3560 N (800 lb)
Cable Type: Electrical Cable
Speed: 4-36 feet per minute. (1.2-11 meters per minute)
Prime Mover Specification: Tire Pressure Carlisle Turf Glide : 1.5 bar (22 psi) Carlisle USA Trail : 3.8 bar (50 psi)
Capacity: Approx. 11,300 kg (25,000 lb)
Amperage Rating: 15 Amps
Voltage
115 Volts
Video

Feed up to 8 cables at once with Greenlee's Ultra Cable Feeder! Take a deeper dive into the various configurations and loading options! Startup & Operation Tips inside.
