3M ScotchCode Wire Marker Tape Refill Roll SDR 10-19

/
$40.99 USD & FREE Shipping.
Extended Handling May Be Required
  • High tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces
  • Available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols
  • Can be used for applications with operating temperatures between -40°F (-40°C) to 250°F (121°C)
Overview

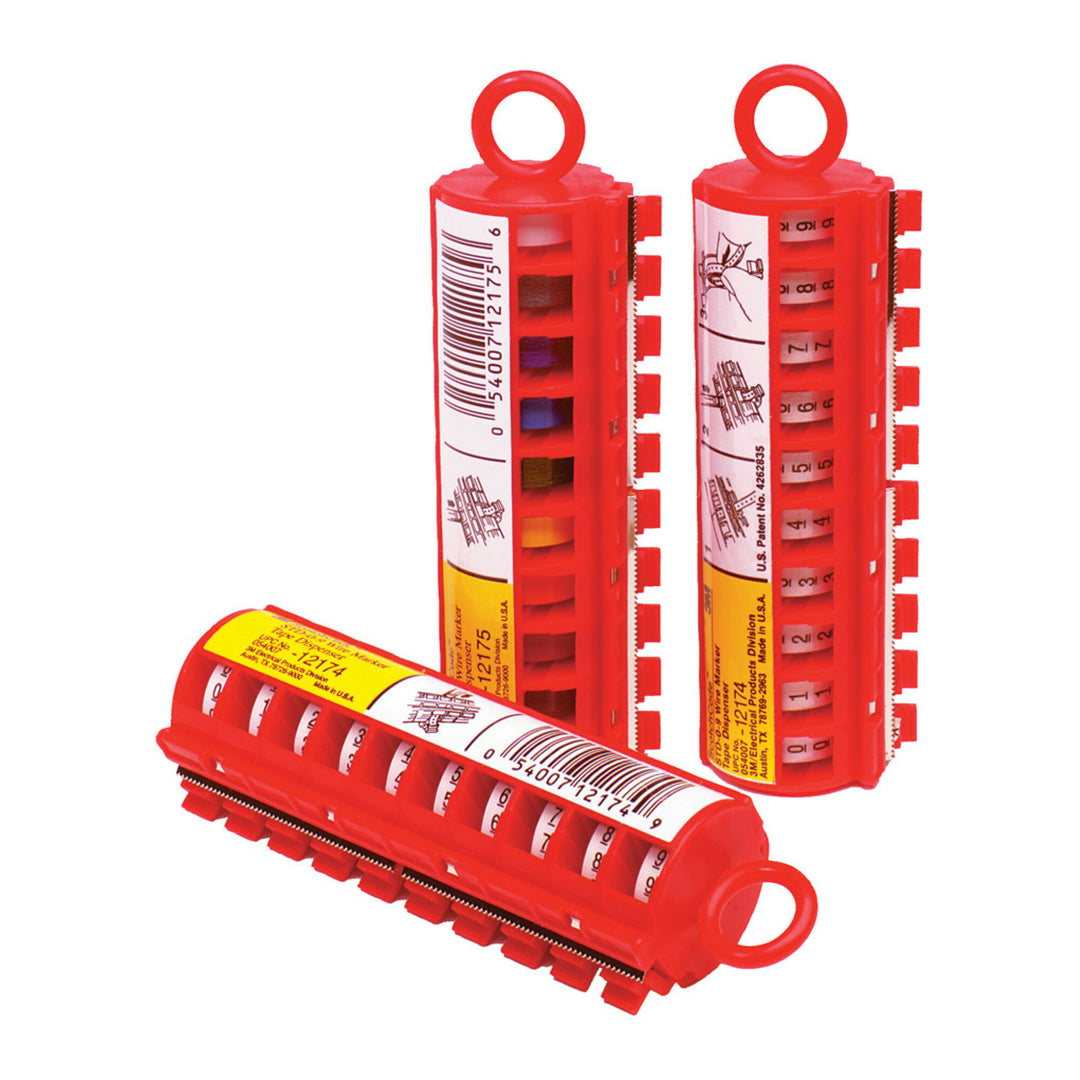

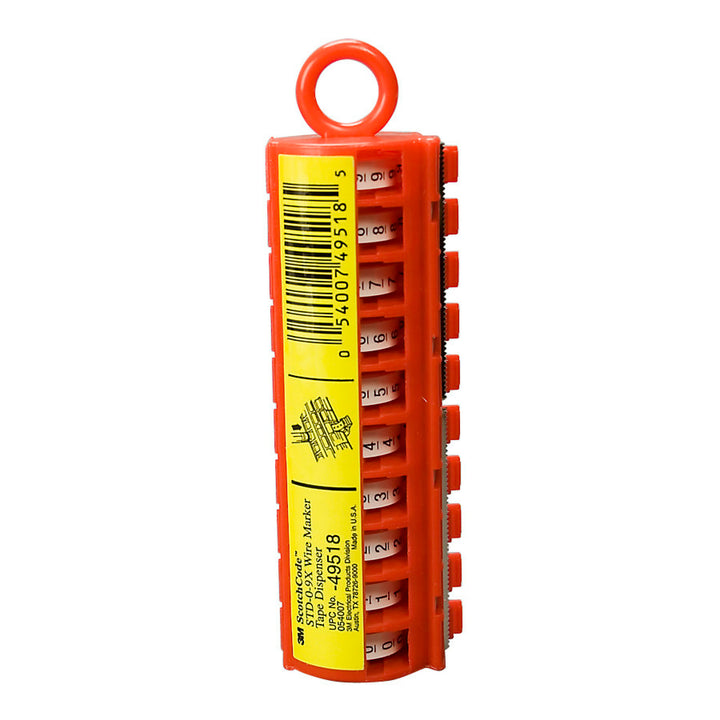

3M ScotchCode Wire Marker Tape Refill Roll SDR is available in ten NEMA colors, individual numbers and consecutive numbers, letters and symbols.3M ScotchCode™ Wire Marker Tape Refill Roll SDR tape features a high tack, acrylic adhesive that resists solvents, oil and water and adheres firmly to insulation surfaces. The SDR tape can be used for applications with operating temperatures between -40°F (-40°C) to 250°F (121°C).
Brand img

3M ScotchCode Wire Marker Tape Refill Roll SDR 10-19

Specifications
General Information
Brand
3Mâ„¢
Dispenser/Marker Type
Tape Roll Refill
Marker ID Style
Pre-printed
Marker Type
Dispenser
Printed Text Type
Numbers - 10-19
Product Type
Identification
Country Of Origin
United States
Sold As
Carton
Lead Time
2 days
California Residents
Proposition 65 Warning
Dimensions and Specifications
Marker Size
Cut Length to Suit
Maximum Insulation Outer Diameter (Metric)
3.7 mm
Maximum Insulation Outside Diameter
0.145 in
Maximum Operating Temperature (Celsius)
121 Degree Celsius
Maximum Operating Temperature (Fahrenheit)
250 Degree Fahrenheit
Maximum Recommended Voltage Rating
600 V
Operating Temperature Range (Celsius)
-40 °C to 121 °C
Overall Length (Metric)
2.4 m
Overall Width (Metric)
5.46 mm
Voltage Application
Low Voltage
Maximum Insulation Outer Diameter Metric
3.7
Width
0.94 in
2.38 cm
Height
0.94 in
2.38 cm
Length
3.63 in
9.21 cm
Volume
3.19 cubic inch
52.3 cm3
Weight
1.12 oz
31.75 g
Other Details
Legend
10 - 19
Refill
Tape Roll
Solution For
Access Network: xDSL
UV Resistant
No
Units Per Case
50.0
Wire Marker Products
Wire Marker Tape Dispenser and Refill Rolls
Usage Information
Application
Marking Wire and Cable
Material and Composition
Adhesive Material
Acrylic
Material
Plastic
Color and Appearance
Legend Color
Black
Tape Color
White
