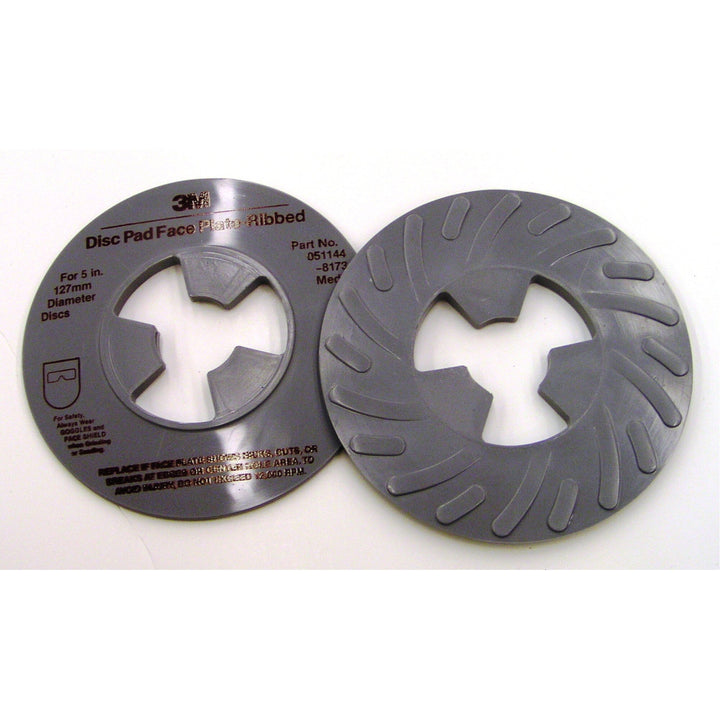

3M Disc Pad Face Plate Ribbed 81734, 5 in Medium Gray
3M Disc Pad Face Plate Ribbed 81734, 5 in Medium Gray

3M Disc Pad Face Plate Ribbed 81734, 5 in Medium Gray

Regular price
/

$235.99 USD & FREE Shipping.
  • Designed for use with a 3Mâ„¢ Disc Pad Hub
  • Various flexibilities support grinding applications ranging from lightweight to heavy-duty
  • Plate accommodates a fiber disc of equal diameter
  • Plate color indicates disc density for easy identification in the workroom
Overview
3M Disc Pad Face Plate backs a same size fiber disc (sold separately) to provide firm support and the force required for grinding applications. It is used in conjunction with a disc pad hub (sold separately), which attaches to the power tool, and held into place along with the appropriate disc using a retainer nut (sold separately).

This assembly allows 3Mâ„¢ Disc Pad Face Plate to be easily changed without removing the disc pad hub, allowing the operator to use a single tool for multiple applications from heavy grinding to finishing a workpiece.

Some face plates have ribbing on the bottom face. Ribbed face plates provide additional force when needed for optimal fracturing of the abrasive mineral. By reducing the area of contact, or pressure per square foot (PSI), ribbed face plates increase the grinding pressure of the abrasive with the same amount of operator effort, and extend disc life when dulling is a problem.

Choose a plate with the level of firmness needed for the application—a lighter density face plate for lighter weight grinding applications, and a harder density face plate for more heavyweight grinding applications. Using the correct face plate for the application ensures that the abrasive mineral will fracture as it should, maximizing the life of the abrasive. The plate comes in one of four different colors that indicate the density so the correct plate can be easily identified in the workroom: red = extra hard (for heavy grinding with the coarsest grades), black = hard (for heavy metal removal, large welds, etc.), gray = medium (for general purpose grinding and finishing), and white = soft (for finishing operations on flat or contoured surfaces).

3M Disc Pad Face Plate Ribbed 81734, 5 in Medium Gray

Specifications
General Information
Brand
3Mâ„¢
Abrasive Attachment Type
Hub & Retainer Nut
Function/Attachment Style
Mechanical Attachment
Product Type
Disc Pad Face Plate
Type
Retainer Nut
Country Of Origin
United States
Sold As
Case
California Residents
Dimensions and Specifications
Maximum Speed
12000 mps
Net Weight (Imperial)
1.53 lb
Net Weight (Metric)
694 g
Overall Diameter (Imperial)
5 in
Overall Diameter (Metric)
127 mm
Overall Length (Imperial)
7.2 in
Overall Length (Metric)
18.29 cm
Overall Width (Imperial)
6.9 in
Overall Width (Metric)
17.53 cm
Overall Length Imperial
7.2
Width
6.89 in
17.5 cm
Height
4.02 in
10.2 cm
Length
7.2 in
18.3 cm
Volume
199.34 cubic inch
3266.55 cm3
Weight
22.56 oz
639.6 g
Other Details
Industries
Marine
Sub Industries
Metal Implants
Usage Information
Application
Grinding
Equipment - Machines
Right Angle Grinders
Equipment Machines
Disc Sanders
Right Angle Grinders
Color and Appearance
Product Color
Medium Gray
Shape
Round
Certifications and Standards
Density Rating
Medium
