Stahlwille 96504040 Torque wrench MANOSKOP

$1,299.99 USD & FREE Shipping.
/
Extended Handling May Be Required
  • Clicking type with dual stop signal
  • no reset to “0' required, as the measuring element is only under load when a force is applied
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
  • Quick adjustment thanks to easy-to-operate locking lever in handle
Overview
This torque wrench features a clicking type mechanism with dual stop signal and requires no reset to “0” as the measuring element is only under load when a force is applied. It is designed for interchangeable insert tools and includes a QuickRelease safety lock. Quick adjustment is enabled by an easy-to-operate locking lever in the handle, and a non-slip adjuster with thumb recess allows rapid torque changes. The wrench has a double scale in N·m/ft·lb or N·m/in·lb and is also available on request as an N·m only version. Counter-clockwise tightening is possible by turning the insert tools over. The clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range. Optimal calibration is achieved with perfectControl® calibration systems No. 7794 or calibration systems No. 7706 and 7791. Easy adjustment is possible without disassembly via 2 external adjustment screws. The torque wrench features a 2-component handle and comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017, with an accuracy of ± 4%.
Brand img

Stahlwille 96504040 Torque wrench MANOSKOP

You may also like
Specifications
General Information
Brand
Stahlwille
Country of Origin
Germany
UPC
4018754269525
California Residents
Proposition 65 Warning
Part Number
96504040
Product Type
Torque wrench
Physical Characteristics
Length
675 mm
Height
63 mm
Weight
2.69 kg
5.92 lb
Details
Features
Clicking type with dual stop signal
no reset to “0' required, as the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
Quick adjustment thanks to easy-to-operate locking lever in handle
non-slip adjuster with thumb recess for quick torque adjustment
double scale N·m/ft·lb or N·m/in·lb
also available on request as a N·m only version without dual scale
counter-clockwise tightening by turning the insert tools over
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

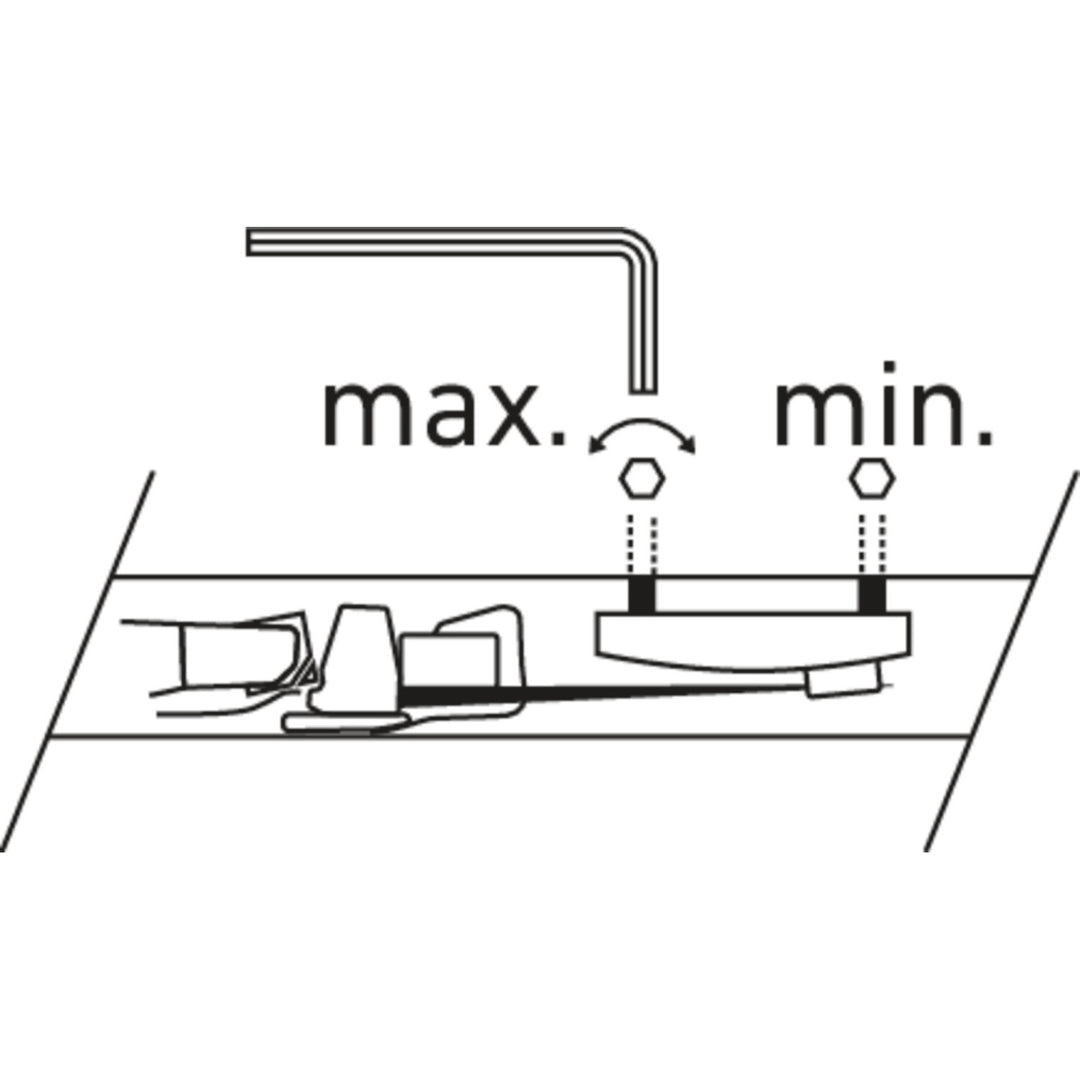

easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 4%
About Manufacturer
Stahlwille

While there are many brands of high quality German tools, few are as recognized as Stahlwille. Stahlwille Tools is well known not just for automotive tools, but they’re a brand widely used by the aerospace industry. One of Stahlwille’s contributions to aerospace was the “Tool Control” System which uses bright colors in the storage case that show only when a tool is missing. Stahlwille has also led innovation in aerospace applications by creating tools like the Anti Slip Drive, the Spline Drive the Quick Release and many more. The quality of Stahlwille Tools is among the best, anything less would be disastrous for those in aerospace.
