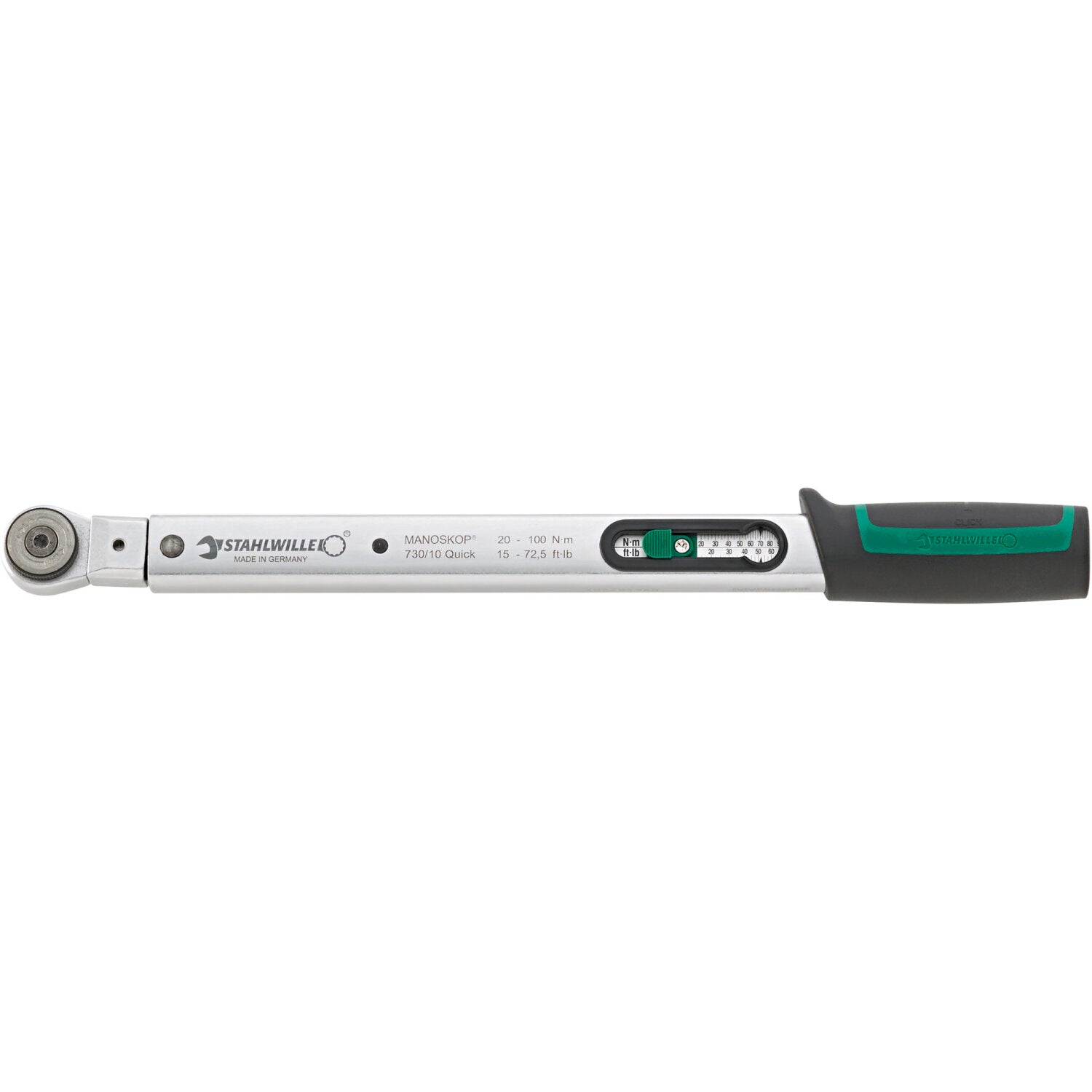

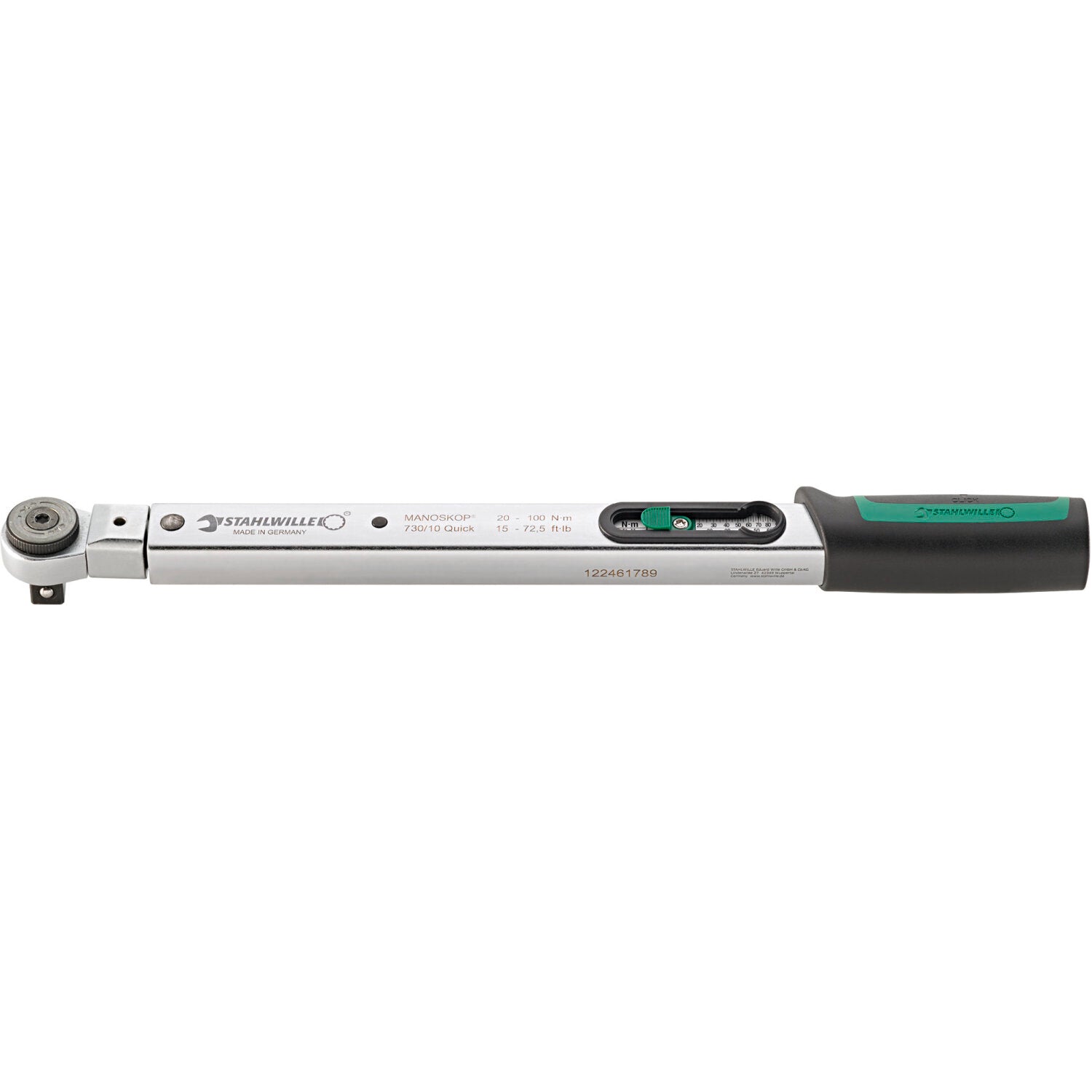

stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
stahlwille 96504030 730R/30 Ref Torque Wrenches
Stahlwille logo

stahlwille 96504030 730R/30 Ref Torque Wrenches

$659.42 USD & FREE Shipping.
/
%3Cp%3EEarn%20[points_amount]%20when%20you%20buy%20this%20item.%3C/p%3E
Extended Handling May Be Required
  • Clicking type with dual stop signal
  • no reset to “0' required, as the measuring element is only under load when a force is applied
  • mount for interchangeable insert tools
  • with QuickRelease safety lock
  • Quick adjustment thanks to easy-to-operate locking lever in handle
Overview

This torque wrench features a clicking type mechanism with dual stop signal and does not require resetting to “0,” as the measuring element is only under load when force is applied. It includes a mount for interchangeable insert tools, QuickRelease safety lock, and a locking lever in the handle for quick adjustment. The non-slip adjuster with thumb recess allows fast torque changes, and the double scale displays N·m/ft·lb or N·m/in·lb. Counter-clockwise tightening is possible by turning the insert tools over, and the clicking mechanism is insensitive to continuous loads and counter-loads up to the maximum measurement range. Optimal calibration is achieved with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791. Easy adjustment without disassembly is possible via two external adjustment screws. The wrench has a 2-component handle, comes with a calibration certificate in accordance with DIN EN ISO 6789-2:2017, and provides an accuracy of ± 4%.

Brand img

stahlwille 96504030 730R/30 Ref Torque Wrenches

You may also like
Specifications
General Information
Brand
Stahlwille
Product Type
Torque Wrenches
Packaging
Bulk
Country of Origin
Germany
UPC
4018754326006
California Residents
Proposition 65 Warning
Part Number
96504030
Physical Characteristics
Weight
1.49 kg
3.28 lb
Details
Wrench Type
Torque
Torque Range Nm
60-300 NM
Torque Display Scale
± 4%
Size
5–80
Features
Clicking type with dual stop signal
no reset to “0' required, as the measuring element is only under load when a force is applied
mount for interchangeable insert tools
with QuickRelease safety lock
Quick adjustment thanks to easy-to-operate locking lever in handle
non-slip adjuster with thumb recess for quick torque adjustment
double scale N·m/ft·lb or N·m/in·lb
also available on request as a N·m only version without dual scale
counter-clockwise tightening by turning the insert tools over
clicking mechanism insensitive to continuous loads and counter-loads (up to the max. measurement range of the torque wrench)
optimal calibration with perfectControl® calibration systems No. 7794 or calibration systems No. 7706, 7791

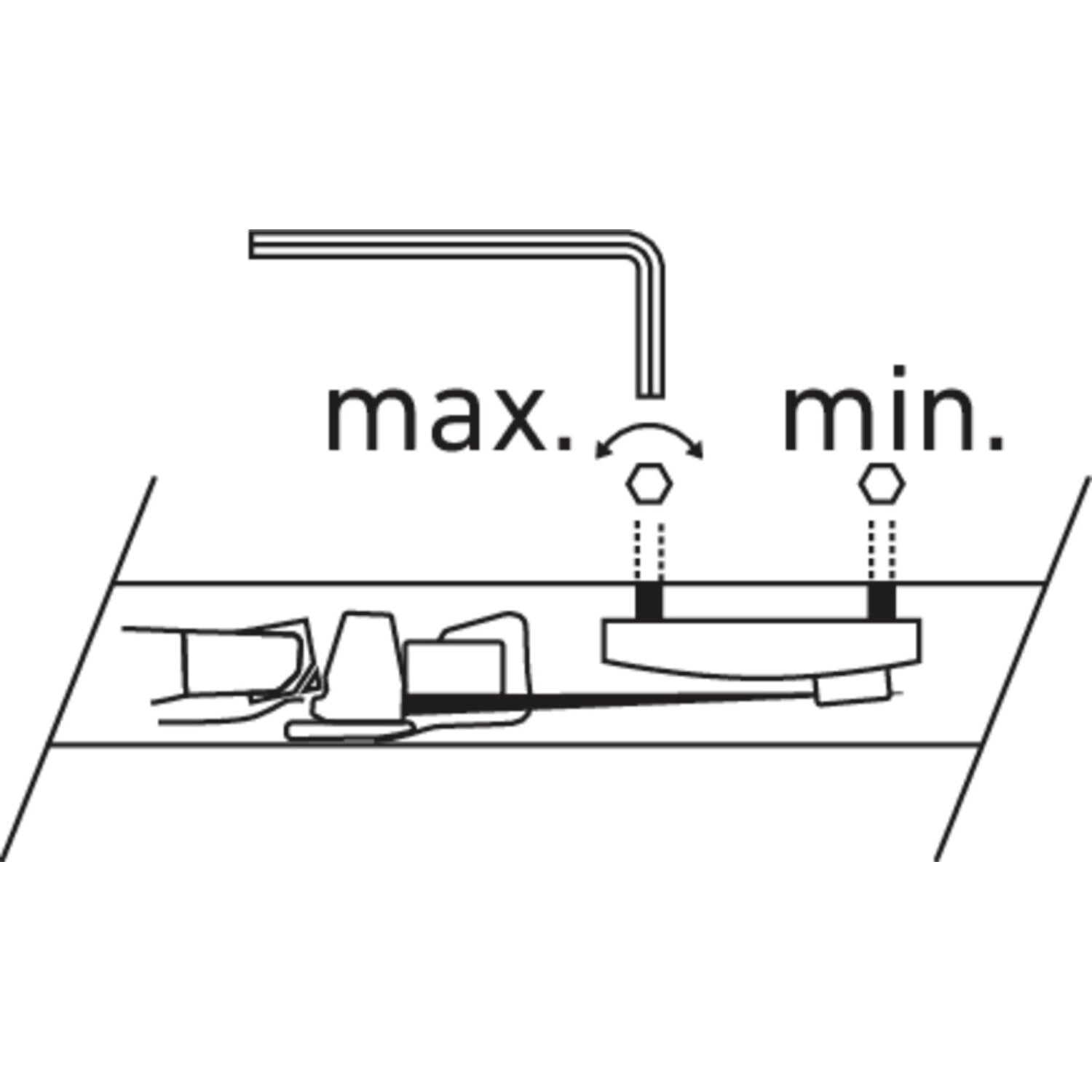

easy adjustment without disassembly via 2 external adjustment screws
with 2-component handle
calibration certificate in accordance with DIN EN ISO 6789-2:2017
accuracy ± 4%
Drive Connector Size
1/2 Inches
